A Complete Guide on Wire EDM Cutting

Tight tolerances? Complex shapes? Wire EDM solves them with zero contact.

Wire EDM uses electrical discharge to cut hard metals precisely, without mechanical force or tool pressure.

This guide explains what makes Wire EDM special, and how to decide if it fits your project.

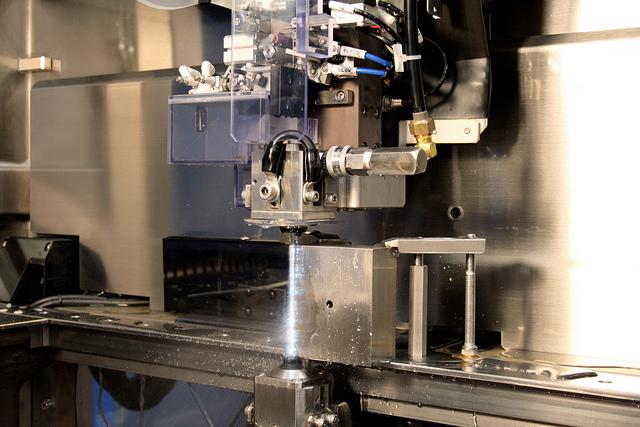

What Is Wire EDM and How Does It Work?

Metal too hard for traditional tools? Wire EDM can cut it cleanly, without heat zones or burrs.

Wire EDM (Electrical Discharge Machining) uses a thin wire and electrical sparks to slice conductive materials.

Understanding the Wire EDM Process

Let’s dive into the science behind it.

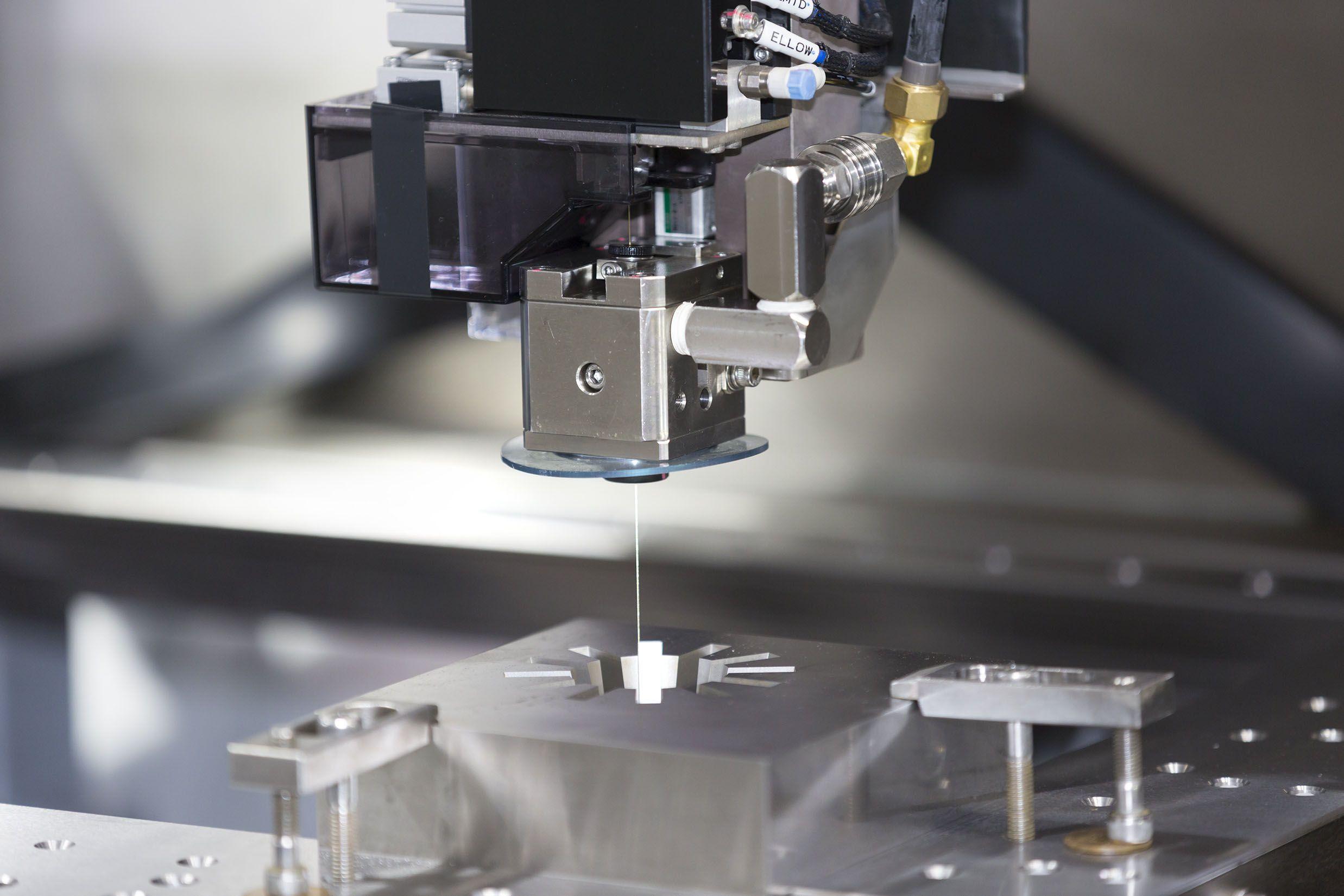

How the Cutting Happens

Wire EDM works by creating sparks between a moving wire (usually brass) and the workpiece submerged in dielectric fluid¹. Each spark removes a tiny piece of metal, allowing extremely precise cuts.

Key Components of a Wire EDM² Machine

• Wire electrode: Usually brass, 0.1–0.3mm diameter.
• Workpiece: Must be conductive, such as steel, titanium, or carbide.
• Dielectric fluid: Often deionized water, flushes debris and controls sparks.
• Power supply: Generates pulsed current to produce controlled discharges.
• CNC controller: Moves the wire along programmed tool paths.

How It Differs from Other Machining

Unlike milling or turning, there's no contact. No force. No tool wear. That’s a major advantage when dealing with fragile or ultra-hard parts.

EDM Process Overview Table

Feature	Description
Tool	Thin wire (brass/copper)
Material Contact	No physical contact
Machining Type	Non-traditional, thermal erosion
Surface Finish	Extremely fine, no burrs
Accuracy Level	±0.002mm possible

When clients ask me for clean edges on small precision parts, this is my go-to method.

---

Core Advantages of Wire EDM Cutting?

Need parts with sharp internal corners or tight tolerances³? EDM is unmatched.

Wire EDM excels at producing highly accurate, burr-free parts, especially from hard-to-machine metals.

Why Choose Wire EDM?

Here’s why this process is becoming more common in precision manufacturing.

1. No Mechanical Stress

There is no physical force on the part, which prevents distortion—especially important for delicate or thin sections.

2. Tight Tolerances

We regularly hold tolerances within ±2 microns. This is essential for mold tooling or precision dies.

3. Excellent Surface Finish

EDM produces a smooth finish without additional polishing, saving secondary processing costs.

4. Cuts Hardened Metals

You can machine parts after heat treatment. This avoids shape change due to later stress relieving.

5. Complex Geometry Possible

Sharp corners, intricate pockets, thin walls—things impossible with traditional tools.

Wire EDM Advantage Table

Benefit	Why It Matters
Stress-free machining	Ideal for thin or delicate parts
Precision	Enables tight fits and functional assemblies
Fine surface finishes	Reduces or eliminates post-processing
No heat-affected zone	Prevents material weakening
Versatility	Works on hardened steel, titanium, and more

I’ve used Wire EDM for jobs where conventional CNC just can’t achieve the needed geometry.

---

Typical Materials Suitable for Wire EDM?

Got titanium or carbide to machine? Wire EDM cuts materials others can't.

Wire EDM works only on conductive materials⁴, but handles extremely hard alloys with ease.

Material Compatibility

Here’s what I’ve learned from experience.

Conductivity Is Key

The base material must be electrically conductive. Otherwise, sparks won’t form, and the process fails.

Commonly Used Materials

• Tool Steels (H13, D2, A2): Ideal for dies and punches.
• Tungsten Carbide: EDM handles it better than any milling tool.
• Titanium and Inconel: High-temp alloys for aerospace use.
• Copper and Brass: Often used for electrodes and prototype parts.
• Aluminum: EDM works, but it’s less common due to rapid erosion.

Material Suitability Table

Material	EDM Suitability	Common Use Case
Tool Steel	Excellent	Mold inserts, punches, dies
Carbide	Excellent	Precision wear parts
Titanium	Excellent	Aerospace components
Copper/Brass	Good	Electrical connectors, prototypes
Aluminum	Moderate	Low-volume prototypes
Stainless Steel	Excellent	Medical and food-grade components

Some clients ask about non-metals like ceramics—unfortunately, EDM won’t work on them unless coated with conductive layers.

---

Common Industrial Applications of Wire EDM?

Need complex, accurate parts in aerospace, medical, or mold tooling? EDM is likely involved.

Wire EDM is used in high-precision industries⁵ like aerospace, tool making, and medical devices.

Where Is EDM Used?

Let’s look at real-world scenarios where I apply EDM services.

Mold and Die Manufacturing

Wire EDM is perfect for making inserts, cores, ejector plates, and fine cavities. Since we can machine hardened steel, it improves dimensional stability.

Aerospace Industry

Components like turbine blades, fuel injector parts, and structural brackets often require thin-walled designs and exotic alloys—perfect for EDM.

Medical Devices

Wire EDM⁶ produces surgical tools and orthopedic parts where burr-free edges are critical.

Electronics and Micro-Mechanics

With ±2 micron accuracy, EDM can make parts smaller than a grain of rice with consistent quality.

Industrial Application Table

Industry	EDM Use Case	Reason for Use
Mold Tooling	Inserts, cavities, punches	High precision after heat treatment
Aerospace	Titanium brackets, fuel components	Tight tolerance and complex shapes
Medical Devices	Surgical instruments, bone screws	Burr-free, bio-safe surfaces
Electronics	Connectors, micro housings	Micron-level accuracy

When I work on tooling for injection molds or progressive dies, EDM gives me clean geometry that boosts lifetime and performance.

---

Key Design Considerations for Effective Wire EDM Machining?

EDM allows complex shapes, but poor design still ruins efficiency and cost.

Designing for EDM requires clear paths, start holes, and awareness of corner radii and part thickness.

What to Plan in Your CAD Model

Here’s how to prepare parts for trouble-free EDM production.

1. Provide a Start Hole

EDM doesn’t “drill” into solid blocks. You must design a small pre-drilled hole to insert the wire.

2. Think About Tapering

The wire can tilt at angles. You can create tapered walls, but they need to be planned in advance.

3. Avoid Sharp Internal Corners

Wire has a radius. Sharp internal corners will become rounded. Account for that when fitting into assemblies.

4. Manage Wire Breakage Zones

Parts with very tight channels or extreme geometry risk wire breaking. Leave room for flushing fluid to escape.

5. Optimize Part Clamping

Plan for how the part will be held without interfering with the wire path.

EDM Design Tips Table

Design Factor	Recommendation
Entry Point	Add pre-drilled hole (Ø > 0.3mm)
Corner Radii	Min. internal radius = wire radius
Tapered Features	Mention required angle in drawing
Wall Thickness	Avoid ultra-thin unsupported walls
Part Holding	Leave clamp allowance outside cut zone

Good design saves cost. I’ve seen parts where a $10 tweak in the CAD file prevented a $100 headache in machining.

---

Limitations and Challenges in Wire EDM Cutting?

EDM is not always the answer. There are some technical and financial downsides.

Despite its strengths, Wire EDM has slower speeds⁷, limited material range⁸, and higher costs⁹ than conventional methods.

What to Watch Out For

From experience, here are the pain points:

1. Slow Cutting Speed

EDM removes material spark by spark. It’s not for bulk cutting. For example, a deep cut on thick steel might take hours.

2. Only Works on Conductive Materials

Non-metals like plastic, ceramic, or glass are not suitable unless pre-treated.

3. Higher Cost per Part

The process is precise but slow. This drives up cost, especially for large batches.

4. Wire Breakage Risks

If flushing is poor or corners are too sharp, the wire can snap and stall the job.

5. Limited Availability

Not every shop offers wire EDM, so lead times can be longer.

Limitation Comparison Table

Limitation	Impact	Mitigation Tip
Slow speed	Long cycle time for thick parts	Use roughing pass + skim passes
Conductivity required	No plastics or ceramics	Use inserts or hybrid methods
Expensive per unit	Higher prototype cost	Use EDM only for critical tolerances
Wire breakage	Interrupted jobs	Design smoother paths, ensure flushing

If your part doesn't demand EDM-level accuracy, I might suggest CNC milling or turning to save cost and time.

---

Conclusion

Wire EDM delivers precision where traditional methods fail. But it’s important to match it with the right design, materials, and project needs for best results.
