A Complete Guide to Helical Milling Techniques in CNC Machining

Helical milling is a powerful CNC technique that combines linear and circular tool paths to create holes, slots, and contours with exceptional control over chip evacuation and surface quality.

Compared to traditional plunge cutting or drilling, helical milling offers better surface finish, tool life, and precision. Whether you're machining metals, plastics, or composites, this method can help you tackle difficult geometries with ease.

In this guide, I’ll walk you through everything you need to know about helical milling—from the fundamentals to expert tips.

---

What is Helical Milling?

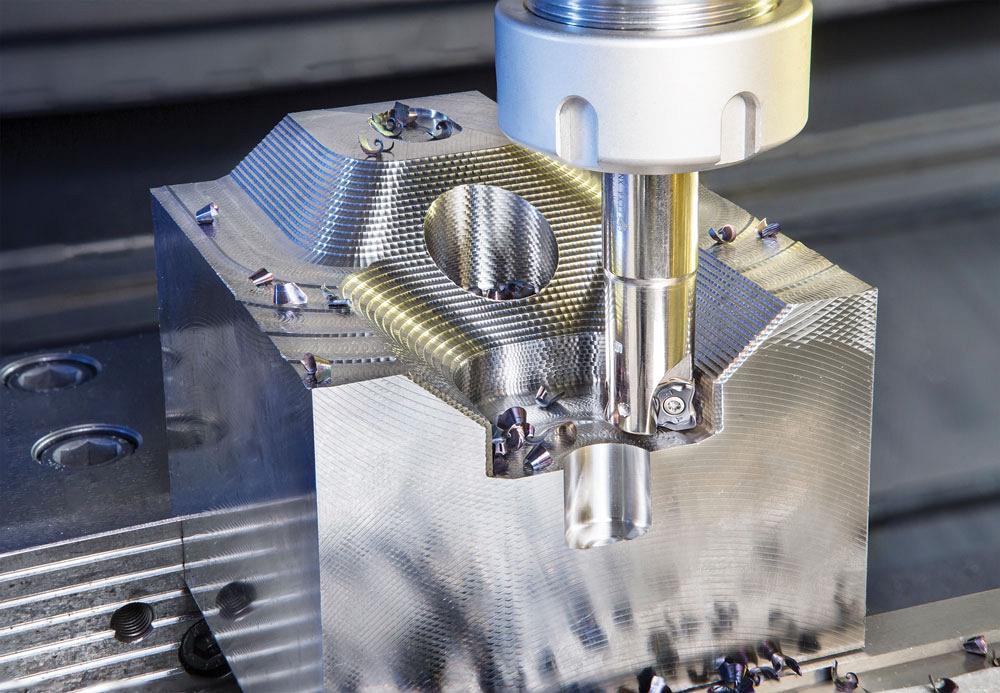

Helical milling is a CNC machining process where the cutting tool moves along a helical path—both axially (downward) and radially (circularly)—to gradually remove material.

Rather than plunging straight into the material like a drill, the tool enters and exits the part with a smooth spiral motion. This reduces the load on the tool and machine and produces more accurate holes and contours.

Dive Deeper: Helical Milling¹ vs. Drilling

At first glance, both techniques might seem similar—they both make round holes. But here’s where they differ:

Feature	Drilling	Helical Milling
Tool Path	Vertical plunge	Spiral (circular + axial movement)
Tool Type	Twist drill	End mill (flat or ball nose)
Surface Finish	Often rough	Very smooth, customizable
Heat Management	Poor chip removal	Excellent chip evacuation
Tool Stress	High	Lower due to gradual entry
Hole Size Flexibility	Fixed to tool size	Adjustable with tool path

Helical milling is not just for holes—it’s also used to machine threads, pockets, slots, and contoured features where precision and finish are key.

---

Benefits of Using Helical Milling

Helical milling offers several performance and efficiency advantages, especially when machining tough materials or tight tolerances.

Key Benefits

• Better Tool Life²: Smooth entry and exit reduce mechanical shock.
• Superior Surface Finish³: Less vibration and better chip removal lead to a smoother finish.
• High Accuracy: Ideal for precision bores or contours with ±0.01mm tolerances.
• Flexible Diameters: You can machine holes of various sizes with the same end mill by adjusting the helical radius.
• Material Versatility: Works well on stainless steel, titanium, hardened alloys, and composites.
• Reduced Heat Build-Up: Continuous cutting with proper chip evacuation lowers cutting temperature.

Dive Deeper: The Science Behind the Finish

Helical milling minimizes the impact force on both the cutting tool and the workpiece. Instead of shearing all the material at once, the helical path allows for gradual engagement. This:

• Reduces chatter, especially when machining long holes or deep cavities.
• Improves dimensional consistency, especially in thin-wall parts.
• Avoids tool deflection, as radial cutting pressure is evenly distributed.

In our shop, we often use helical milling for aluminum and stainless steel enclosures. Not only does it improve surface finish, but it saves time and reduces scrap from tool breakage.

---

---

Best Tools and Machine Settings

To master helical milling, you need the right tools, CAM strategies⁴, and machine settings.

Tool Selection

• End Mills: Flat or ball nose end mills are typically used.
• Helix Angle: Choose tools with high helix angles (35–45°) for smoother chip flow.
• Coatings: For stainless steel or titanium, opt for TiAlN-coated carbide tools.

Recommended Machine Settings

Parameter	Best Practice
Spindle Speed	High RPMs (5,000–20,000) depending on material
Feed Rate	Moderate (based on chip load and step-over)
Step-Over (Radial)	5–20% of tool diameter
Step-Down (Axial)	0.5–2 mm per pass (depending on tool)
Ramp Angle	1°–5° is ideal for smooth entry

Dive Deeper: Optimizing CAM Toolpaths

Your CAM software plays a big role in helical milling. Some key points to consider when generating toolpaths:

• Use Circular Interpolation (G02/G03 + Z movement): This ensures a true helical path.
• Maintain Constant Engagement: Avoid sudden changes in tool load to preserve tool life.
• Simulate Toolpaths: Always verify in simulation to avoid collisions or excess load.

We once ran a project cutting precision fluid channels in PEEK plastic. By reducing the helical ramp angle from 5° to 2°, we eliminated tool deflection and achieved a perfect fit between mated parts.

---

Common Applications in CNC Machining

Helical milling is used in a wide range of industries and components where precision, surface finish, and material versatility are required.

Typical Use Cases

1. Precision Hole Making⁵

   • Used instead of reaming or boring to achieve tight tolerances.
   • Ideal for aerospace and automotive parts with alignment-critical holes.

2. Thread Milling

   • Both internal and external threads can be milled helically.
   • Avoids the need for taps and works in harder materials.

3. Slot and Pocket Milling

   • Smooth entry prevents material tear-out.
   • Ideal for slots in brittle plastics or thin-walled features.

4. Contour and Profile Milling

   • For parts with circular features that need tight tolerances.
   • Used in mold making, medical components, and sensor housings.

5. Composite and Plastic Machining

   • Reduces delamination or melting.
   • Great for high-performance plastics like PEEK or PTFE.

Dive Deeper: Case Study – Heat Sink Manufacturing

In heat sink production, we often use helical milling to create deep, narrow channels. These features are hard to reach with standard plunging cuts. With helical paths, we ensure chip removal and avoid overheating, especially in copper or aluminum.

The result: smoother channel walls and higher thermal performance without the need for secondary deburring.

---

---

Tips for Achieving Precision and Surface Finish

Helical milling has huge potential, but only if you apply the right techniques. Below are practical tips based on real-world machining experience.

1. Tool Length Matters

Use the shortest possible tool to minimize deflection. Long tools may chatter, especially at higher ramp angles.

2. Monitor Tool Wear⁶

Even with lower load, tool wear can sneak up on you during long jobs. Inspect the edge regularly and use tool life monitoring when possible.

3. Use Fine Step-Downs for Finishing

After roughing, finish with smaller axial passes (e.g., 0.2mm) to improve the surface and reduce burrs.

4. Apply Proper Coolant Strategy⁷

Use flood coolant or air blast to clear chips from the spiral path, especially in blind holes or deep slots.

5. Program Entry/Exit Carefully

Avoid plunging directly into the material. A lead-in/lead-out with a ramp reduces sudden tool engagement and improves surface quality.

Tip	Why It Works
Short Tools	Reduce chatter and improve precision
Sharp Edges	Prevents melting (in plastics) and tearing
Coolant Use	Removes chips and cools tool
Finish Passes	Improves surface finish and dimensional control
Ramp Entry8	Lowers tool stress and entry burrs

Dive Deeper: Avoiding Common Mistakes

Some common issues in helical milling include:

• Overheating in plastics → Use air coolant and slower feed.
• Chatter in long holes → Reduce ramp angle and tool length.
• Hole diameter drift → Recalibrate or adjust toolpath radius.

We recently helped a client cut mounting holes in polycarbonate casings. Their first attempt melted the edges due to dull tools and no coolant. After switching to air blast and sharp end mills with helical entry, the problem was fully solved—and the part looked clean and professional.

---

---

Conclusion

Helical milling is more than just a fancy way to cut holes—it’s a flexible, precise, and efficient method that can boost productivity and quality in your CNC shop.

By choosing the right tools, dialing in your feeds and speeds, and applying smart programming strategies, you can unlock the full power of this technique.
