In metal finishing, conversion coatings are crucial in enhancing the surface properties of materials, particularly aluminum and steel. Among the most widely used types of conversion coatings are Chem Film1, anodizing, and black oxide. Each of these processes offers distinct advantages and is suited for different applications.
Understanding these differences will help you select the right conversion coating for your project.
What is a Conversion Coating?
A conversion coating is a surface treatment that enhances metals by improving properties such as corrosion resistance and adhesion. This process involves a chemical transformation of the surface layer, resulting in a protective coating.
Key Benefits of Conversion Coatings:
-
Corrosion Resistance: Protects the substrate from corrosion and degradation.
-
Adhesion Enhancement: Improves the adhesion of subsequent coatings, such as paints or primers.
-
Electrical Conductivity: Some coatings can provide good conductivity, which is essential in electrical applications.
-
Aesthetic Appeal: Provides a visually appealing finish, which is especially important in consumer products.
Conversion coatings are essential in various industries, including aerospace, automotive, and electronics, where performance and durability are critical.
Overview of Chem Film (Chromate Conversion Coating)

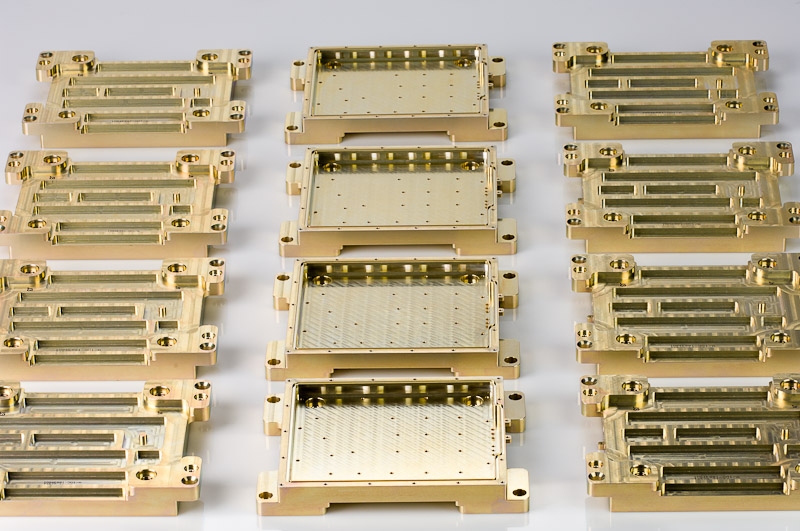

Chem film, also known as chromate conversion coating, is primarily used on aluminum and its alloys. This process results in a thin, protective layer that improves corrosion resistance and can enhance the material's adherence to paints, primers, and other finishes.
Process of Chem Film
Chem film is created by immersing aluminum parts in a solution containing chromates. The chromates react with the aluminum surface, forming a corrosion-resistant layer composed of aluminum oxide and chromium compounds. This process is typically implemented in two types:
-
Type I (Hexavalent): Offers superior corrosion resistance and is often used in aerospace applications where high performance is required, despite being more toxic.
-
Type II (Trivalent): A more environmentally-friendly alternative that provides good corrosion resistance but may have slightly lower performance characteristics compared to Type I.
Key Characteristics
-
Corrosion Resistance: Chem film significantly enhances aluminum's natural corrosion resistance.
-
Adhesion Properties: The surface created by the chromate conversion promotes adhesion for painting and bonding.
-
Electrical Conductivity: Chem film is often used in electrical applications because it does not interfere with conductivity.
Understanding Anodizing and Its Variants

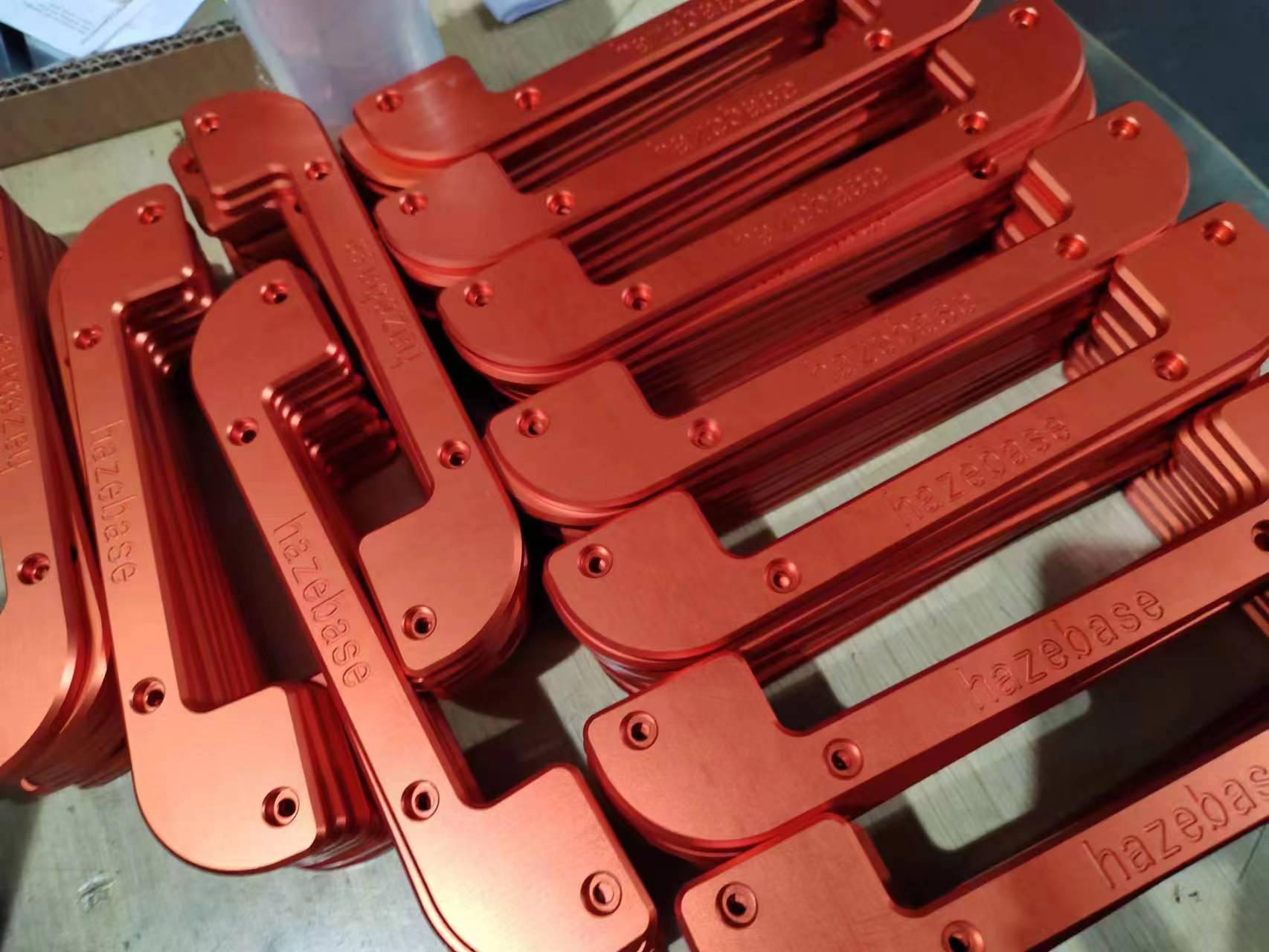

Anodizing is an electrochemical process that converts the metal surface into a durable, corrosion-resistant anodic oxide layer. It is primarily applied to aluminum but can also be used on titanium and magnesium.
Types of Anodizing2
-
Sulfuric Acid Anodizing: The most common form that provides a thick oxide layer, enhancing corrosion resistance and aesthetic appeal.
-
Chromic Acid Anodizing: Typically used in aerospace applications for its thinner film, this type offers minimal dimensional changes and is ideal for situations where tight tolerances are essential.
-
Hard Anodizing: A specialized form that creates a very thick and hard oxide layer, providing robust wear and corrosion resistance, commonly used in military and industrial applications.
Key Advantages of Anodizing
-
Durability: The anodized layer is hard and abrasion-resistant, significantly enhancing the lifespan of aluminum parts.
-
Corrosion Resistance: Anodizing provides excellent protection against corrosion, a vital attribute in harsh environments.
-
Aesthetics: Anodizing can enhance the appearance of aluminum by providing a range of colors and finishes.
-
Non-Toxic: Anodizing does not require the use of hexavalent chromium and is more environmentally friendly.
What is Black Oxide Coating3?
Black oxide coating, also known as blackening, is used on steel and ferrous alloys to enhance corrosion resistance and improve appearance by forming a uniform black oxide layer on the metal surface.
Process of Black Oxide Coating
The black oxide formation occurs through a chemical reaction in an alkaline solution containing metal hydroxides, resulting in a thin layer of magnetite (Fe3O4) on the surface. The process can take place at room temperature or in heated solutions, depending on the desired characteristics.
Key Characteristics
-
Corrosion Resistance: Provides a minimal level of corrosion protection, especially when coupled with oil or wax to seal the surface.
-
Appearance: Offers an aesthetic black finish that is often desired in various applications, enhancing the product's visual appeal.
-
Dimensional Stability: Minimal buildup on the parts, making it suitable for tight tolerance applications.
Key Differences Between Chem Film, Anodizing, and Black Oxide
Understanding the distinctions between these coating processes helps in selecting the right method for specific applications.
| Feature | Chem Film | Anodizing | Black Oxide |
|---|---|---|---|
| Material Compatibility | Primarily aluminum | Primarily aluminum | Primarily steel |
| Corrosion Resistance | Good | Excellent | Moderate |
| Aesthetic Options | Clear/yellow tint | Variety of colors | Uniform black finish |
| Thickness | Thin (1-5 microns) | Varies (5-50 microns) | Very thin (~1-2 microns) |
| Environmental Impact | Contains hexavalent chromium | Environmentally friendly | Generally safe |
| Cost | Moderate to high | Moderate | Low to moderate |
Factors to Consider When Selecting a Conversion Coating
When determining the most suitable conversion coating method, several important factors should be considered:
1. Material Type
The substrate material (aluminum, steel, etc.) is crucial in deciding which coating method is appropriate. Chem film is ideal for aluminum, while anodizing is also suitable for titanium and magnesium, with black oxide primarily used for ferrous materials.
2. Corrosion Resistance Needs
Evaluate the environment in which the coated parts will operate. Anodizing typically offers the highest level of corrosion protection, followed by chem film and black oxide.
3. Desired Aesthetic Appearance
Consider the visual impact of the final product. Anodizing allows for a variety of color finishes, whereas black oxide provides a uniform black appearance. Chem film can be more neutral but may develop a yellow cast.
4. Thickness Requirements
Depending on tolerances and operational needs, the thickness of the coating can be a significant factor. Anodizing provides a thicker layer compared to chem film and black oxide, which might be necessary for specific applications.
5. Environmental Concerns
With increasing focus on sustainability, the environmental impact of the coating process may influence the choice. Anodizing (especially Type II) and black oxide are generally considered more environmentally friendly compared to chem film.
6. Cost Considerations
Budgetary constraints may dictate the choice of coating method. Black oxide is typically the most cost-effective, while chem film and anodizing (especially hard anodizing) may come at a higher price due to their processes and materials involved.
Common Applications of Each Coating Method
Chem Film Applications
- Aerospace Components: Due to its superior corrosion resistance and ability to enhance paint adhesion.
- Electrical Connectors: Offers electrical conductivity while protecting the underlying aluminum components.
- Defense Uses: Provides defense equipment parts with protection against harsh environments.
Anodizing Applications
- Architectural Elements: Building facades, window frames, and other structural components where aesthetics and durability are crucial.
- Consumer Goods: Anodized aluminum is widely used in electronics, sports equipment, and cookware, benefiting from the range of colors and finishes available.
- Automotive Parts: Come equipped with anodized finishes for both aesthetic and functional benefits.
Black Oxide Applications
- Industrial Equipment: Enhances appearance and corrosion resistance in tools and heavy machinery.
- Consumer Products: Used in cookware, fittings, and fasteners where a durable, non-reflective finish is required.
- Firearms and Defense: Provides tactical gear with a non-reflective black finish to improve concealment.
Conclusion
Choosing the appropriate conversion coating for your project involves a careful analysis of the material, desired characteristics, environmental factors, and budget constraints. Chem Film, anodizing, and black oxide each have unique advantages and specific applications.
-
