CNC Engraving: Process, Materials, Applications, and Expert Tips

CNC engraving is revolutionizing precision manufacturing, offering unmatched accuracy and versatility. But how does it work, and what factors impact its quality?

CNC engraving is a subtractive manufacturing process that uses computer-controlled tools to carve designs, texts, or patterns into various materials. It provides high precision, repeatability, and efficiency, making it a preferred choice in industries like aerospace, medical, and custom fabrication.

While CNC engraving is a powerful technology, achieving top-quality results requires knowledge of materials, tooling, and process parameters. Let’s dive deep into how it works and how to optimize it for precision.

What is CNC Engraving?

CNC engraving is a precision machining process¹ that uses computer-controlled tools² to carve designs, text, or patterns into various materials with high accuracy and repeatability.

How CNC Engraving Differs from Other Processes

CNC engraving is often compared to laser engraving and traditional hand engraving. Here’s how they differ:

Process	Material Removal Method	Depth Control	Best For
CNC Engraving	Cutting tool	High	Metals, plastics, wood
Laser Engraving	Heat from laser	Medium	Wood, acrylic, glass
Hand Engraving	Manual tools	Low	Jewelry, fine art

CNC engraving stands out because of its ability to engrave hard materials with deep, precise cuts while maintaining consistency across multiple parts.

How CNC Engraving Works

CNC engraving removes material using high-speed rotating tools³ that follow a programmed toolpath, creating precise and detailed markings with exceptional accuracy.

Steps in the CNC Engraving Process

1. Design Creation – CAD software is used to create the engraving design.
2. Toolpath Generation – CAM software translates the design into a machine-readable format.
3. Machine Setup – The workpiece is secured, and the tool is installed.
4. Engraving Execution – The machine follows the toolpath to engrave the design.
5. Finishing & Inspection – The part is cleaned and checked for accuracy.

Key Components of a CNC Engraving System

Component	Function
Spindle	Rotates the engraving tool at high speeds
Cutting Tool	Removes material to form the design
CNC Controller	Manages movement and cutting parameters
Workpiece Fixture	Holds the material securely during engraving

Understanding these components helps optimize engraving quality by selecting the right tools and parameters.

---

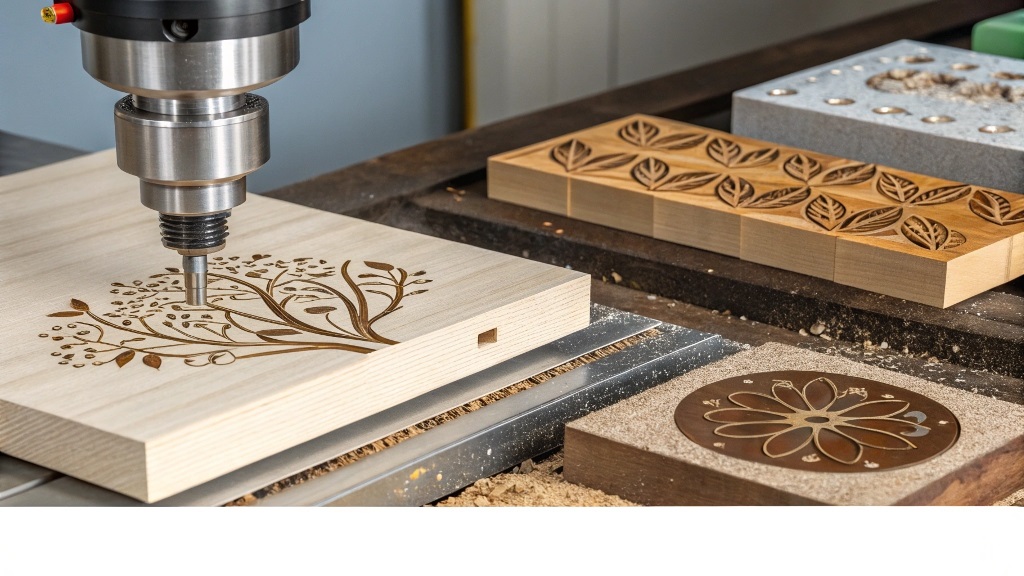

Common Materials for CNC Engraving

**CNC engraving is used on metals, plastics, and composites, with each material requiring specific tools and cutting parameters for optimal precision and q

Properties of Engraving Materials

Material	Hardness	Best Engraving Method
Aluminum	Soft	High-speed spindle, carbide tools
Stainless Steel	Hard	Rigid machine, diamond tools
Brass	Medium	High-speed steel tools, lubrication
Acrylic	Soft	Slow feed rates, sharp cutters
Wood	Soft-Medium	Sharp tools, variable speed control

The choice of material impacts tool wear, engraving depth, and overall precision.

Key Factors Affecting CNC Engraving Quality

CNC engraving quality⁴ depends on cutting speed, feed rate, tool selection⁵, and machine rigidity. Proper optimization ensures precise, repeatable, and high-quality results.

Critical Factors to Consider

1. Tool Selection

   • Carbide tools last longer and provide sharp engraving edges.
   • Diamond-coated tools are best for ultra-hard materials.

2. Cutting Speed & Feed Rate

   • Higher speeds reduce cycle times but may generate excessive heat.
   • Slower feed rates improve accuracy but increase machining time.

3. Depth of Cut

   • Shallow cuts are suitable for fine details.
   • Deep engraving requires multiple passes.

4. Machine Stability

   • Rigid machines prevent vibrations that could distort engravings.

5. Workpiece Holding

   • Secure fixturing prevents movement during engraving, ensuring accuracy.

Fine-tuning these parameters can drastically improve engraving precision.

---

Advantages of CNC Engraving

CNC engraving ensures high accuracy⁶, repeatability⁷, and versatility⁸. It produces durable markings on metals, plastics, and wood with minimal human intervention, making it ideal for industrial and artistic applications.

Key Benefits

Benefit	Explanation
High Precision	Ensures detailed engravings with micron-level accuracy
Repeatability	Ideal for mass production with consistent results
Versatility	Works on metals, plastics, and wood
Automation	Reduces manual labor and increases efficiency
Durability	Engraved markings last longer than printed or painted markings

Industries requiring permanent, high-quality markings benefit the most from CNC engraving.

Applications of CNC Engraving

CNC engraving is used in manufacturing, medical, and decorative industries to create long-lasting, precise markings that withstand wear and harsh environments.

Common Applications

1. Industrial Parts Marking

   • Serial numbers, logos, and barcodes on metal components.

2. Aerospace & Automotive

   • Engraved part numbers and safety instructions.

3. Medical Equipment

   • Permanent markings for surgical tools and implants.

4. Jewelry & Custom Gifts

   • Personalized engravings on rings, watches, and trophies.

5. Electronics & PCB Engraving

   • Circuit board labeling and fine-detail engravings.

Tips for Achieving High-Precision CNC Engraving

Ensure high-precision CNC engraving by using sharp tools, optimizing feed rates, securing the workpiece, and performing regular machine maintenance for consistent accuracy.

Best Practices for Better Engraving Results

1. Use High-Quality Tools

   • Invest in carbide or diamond-coated tools for extended durability.

2. Optimize Cutting Parameters

   • Test different speeds and feed rates to find the best balance.

3. Lubrication & Cooling

   • Reduce heat buildup with coolant or air blasts.

4. Maintain Machine Accuracy

   • Regularly check for spindle runout and tool wear.

5. Choose the Right Fixturing Method

   • Ensure the workpiece is held securely to prevent vibrations.

Following these steps will maximize engraving precision and efficiency.

---

Conclusion

CNC engraving is a powerful tool for creating precise, durable markings on various materials. By understanding the process, selecting the right materials, and optimizing key parameters, manufacturers can achieve exceptional engraving quality.
