CNC Machining Solutions for High-Performance Heat Sinks

Heat sinks need to move heat fast—CNC machining helps make them efficient and precise.

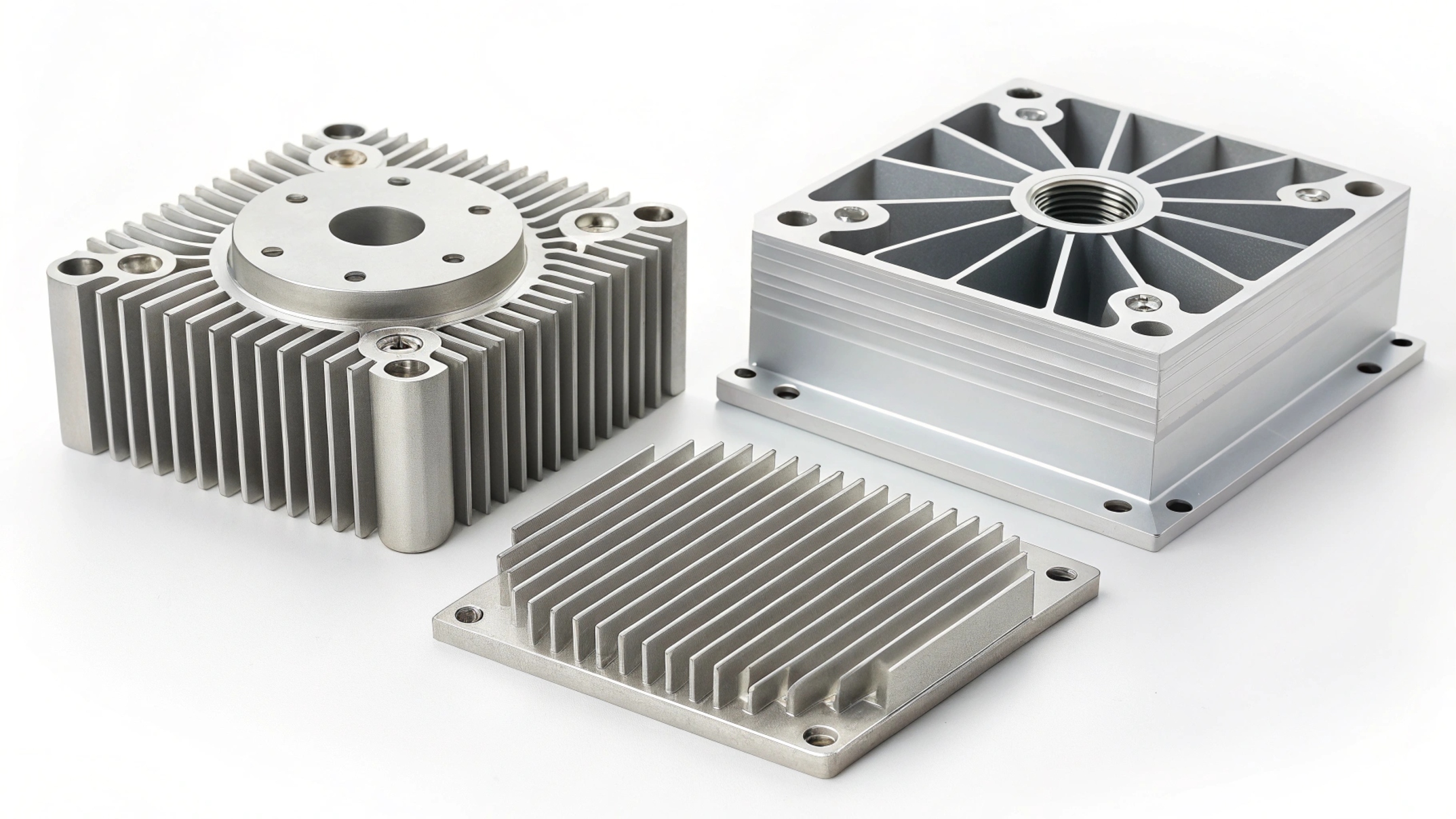

CNC machining creates custom heat sinks with tight tolerances and optimized designs for high-performance thermal management.

Want to improve heat control in your electronics? Let’s explore how CNC machining makes better heat sinks.

Why Use CNC Machining for Heat Sink Production?

Off-the-shelf heat sinks don’t always fit. Custom ones often perform better.

CNC machining allows manufacturers to produce complex, high-performance heat sinks tailored for specific applications.

Dive Deeper: How CNC Solves the Challenges of Custom Heat Sink Manufacturing

Heat sinks are essential in many systems—from LED lights to CPUs to industrial inverters. Their job is to absorb and transfer heat away from hot components. However, not every cooling challenge is the same.

Here’s why CNC machining¹ stands out:

1. Precision and Fit

Some electronic devices need tight mechanical fits. CNC machines can produce heat sinks within microns of tolerance. This ensures maximum surface contact, which boosts heat transfer efficiency².

2. Design Flexibility

CNC lets you cut channels, drill holes, or add fins in custom shapes and angles. That’s important when fitting into tight spaces or directing airflow in one direction.

3. Low to Mid-Volume Production

CNC is great when you don’t need mass production but still want repeatable quality—perfect for custom PCBs, prototypes, or small-batch industrial applications.

CNC Advantage	How It Helps Heat Sinks
Tight tolerances	Better thermal contact with components
Material flexibility	Can machine copper, aluminum, and alloys
Customization	Adjust shape, fin thickness, and size easily
Surface finish control	Improve heat transfer via polishing or texture

At Elue Industry, we often support startups and engineers who need rapid prototypes of heat sinks for new devices. CNC lets us give them exactly what they need, without the time and tooling cost of extrusion or casting.

---

Common Materials for CNC-Machined Heat Sinks?

Not every metal is good at moving heat. You need the right one.

Aluminum and copper are the most common materials for CNC-machined heat sinks³ due to their excellent thermal conductivity⁴.

Dive Deeper: Comparing Heat Sink Materials for Thermal Efficiency and Machinability

The choice of material affects everything—how fast heat moves, how heavy the sink is, how easy it is to machine, and how expensive it will be.

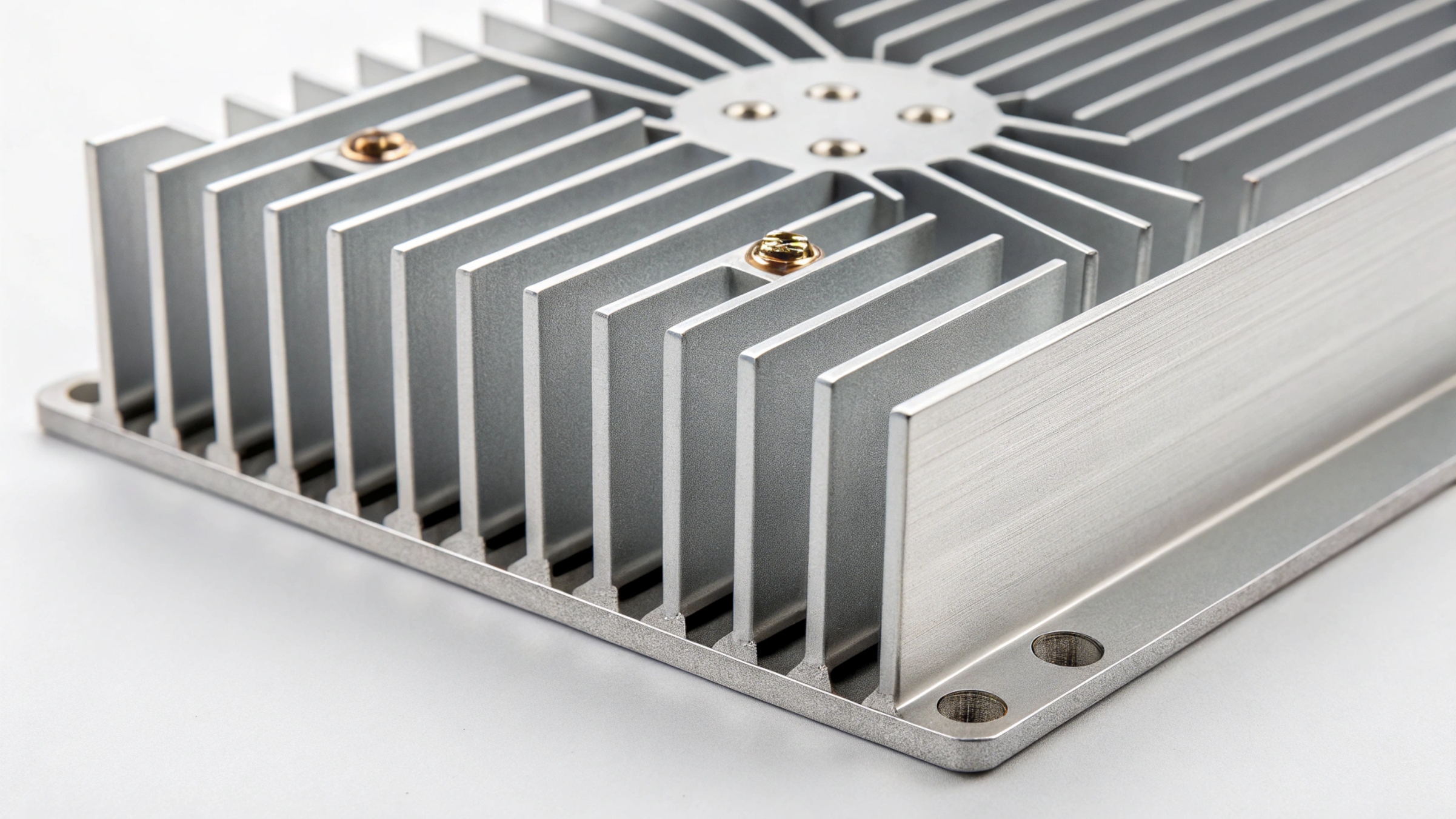

1. Aluminum (6061, 6063)

This is the most common heat sink material. It has good thermal conductivity, is lightweight, and machines easily.

• 6061-T6 is strong and stable, used in general-purpose designs.
• 6063 has better surface finish after machining, often used when appearance matters.

2. Copper (C110)

Copper conducts heat much better than aluminum, but it's heavier, more expensive, and harder to machine.

• It’s often used in high-performance sinks, like in CPUs or RF modules.

3. Composites and Alloys

Some advanced heat sinks combine materials—like copper bases with aluminum fins—for a balance of weight and conductivity.

Material	Thermal Conductivity (W/mK)	Machinability	Weight	Cost
Aluminum 6061	~166	Excellent	Light	Low
Aluminum 6063	~200	Very Good	Light	Low
Copper C110	~385	Fair	Heavy	High
Al-Cu Hybrid	Varies	Moderate	Medium	Medium

In one recent project, we produced CNC-milled copper heat sinks for a client's high-speed data center server blades. They needed maximum cooling in a tiny footprint—copper gave them the edge.

---

Design Considerations for Efficient Thermal Management?

Making a heat sink isn’t just about size. Design details make a big difference.

Good heat sink design uses optimized fin geometry⁵, base thickness, and airflow path to increase thermal performance.

Dive Deeper: Key Elements That Affect a Heat Sink’s Thermal Efficiency

A poorly designed heat sink can cause thermal throttling, system failure, or reduced lifespan for sensitive parts. CNC machining gives us the freedom to design for real-world thermal needs.

Key Design Factors

1. Fin Shape and Density
   More surface area means better cooling. Thin, closely spaced fins transfer heat faster but may block airflow if too dense.

2. Base Thickness
   The base should be thick enough to spread heat across the entire surface. If it's too thin, heat won’t distribute evenly.

3. Contact Surface
   A smooth, flat contact area improves thermal contact. Sometimes, thermal interface materials (TIMs)⁶ help bridge micro gaps.

4. Orientation and Airflow
   Horizontal vs. vertical fins perform differently depending on fan direction or natural convection.

Design Factor	Function	CNC Contribution
Fin Spacing	Balances airflow and surface area	CNC allows control over fin width/angle
Base Thickness	Spreads heat evenly	Machined to spec for uniform distribution
Flatness	Improves thermal interface efficiency	CNC maintains tight flatness tolerances
Custom Channels	Aids active cooling or liquid paths	CNC can cut internal ducts or cavities

During a redesign of an industrial inverter housing, we used CNC to cut radial fins around a circular heat source. This boosted cooling efficiency by 22% in lab tests.

Surface Finishing Techniques to Improve Heat Dissipation?

The surface of a heat sink matters. It can speed up or slow down cooling.

Surface finishing improves thermal contact, airflow interaction, and corrosion resistance of heat sinks.

Dive Deeper: Which Surface Finishes Improve Cooling Performance?

Even the most perfectly machined heat sink won’t perform well if its surface traps air or blocks heat. That’s why finishing is so important.

Common Finishing Techniques

1. Anodizing (for aluminum)
   This electrochemical process adds a hard oxide layer. It increases corrosion resistance and improves radiation heat transfer.

2. Polishing and Grinding
   For base surfaces, polishing removes roughness and improves contact with components. CNC grinding can also be used to level bases.

3. Black Coating or Painting
   Black surfaces radiate heat better. Special thermally-conductive coatings can be applied by spray or dip processes.

4. Nickel Plating (for copper)
   Copper tarnishes over time. Nickel plating protects it without reducing heat transfer much.

Finish Type	Material	Benefit	When to Use
Anodizing	Aluminum	Corrosion resistance, emissivity	General-purpose electronic sinks
Polishing	Any	Smooth contact for heat spreading	High-contact areas like CPU bases
Black Coating	Aluminum/Copper	Better heat radiation	Passive cooling or natural convection
Nickel Plating	Copper	Prevents oxidation	High-end or long-life industrial units

For a European client in telecom, we anodized a batch of aluminum heat sinks in matte black. Their tests showed a 5–8% cooling improvement over raw aluminum.

---

Applications of CNC-Machined Heat Sinks in Electronics?

Anywhere there's heat, there's a need for a heat sink.

CNC-machined heat sinks are used in power electronics⁷, LED lighting, computers, and renewable energy systems.

Dive Deeper: Industry Use Cases and Performance Demands

CNC lets us serve multiple industries with customized cooling solutions. Each one has different needs.

1. Power Electronics

Inverters, drives, and power supplies generate heat continuously. These require rugged, high-capacity heat sinks.

2. LED Lighting⁸

LEDs are efficient but still generate heat at the base. Without proper cooling, they degrade quickly.

3. Computer Hardware

CPUs, GPUs, and VRMs need precision-cooled parts. CNC ensures consistent contact and form for each build.

4. Telecom and RF Devices

These systems generate steady heat and demand low-profile heat sinks that don’t interfere with signal integrity.

5. Renewable Energy Systems

Solar inverters and battery packs rely on compact and lightweight heat dissipation, especially in remote setups.

Industry	CNC Heat Sink Role	Key Material	Design Requirement
Power Electronics	Dissipate heat from high current paths	Aluminum/Copper	Large base, thick fins
LED Lighting	Protect lifespan of diodes	Aluminum 6063	Lightweight, aesthetic finish
Computer Hardware	Precision cooling in tight spaces	Copper/Al Hybrid	Flat base, multi-fin architecture
Telecom	Passive cooling for network units	Black anodized Al	Slim design, mounting holes
Renewable Energy	Compact and efficient dissipation	Aluminum	Lightweight, robust surface finish

A recent case: we supported an electric vehicle startup with CNC-milled aluminum heat sinks that fit inside battery modules. The challenge was fitting the sink around cell holders with just 1 mm clearance—we delivered with ±0.03 mm accuracy.

---

Conclusion

CNC machining offers precision, material flexibility, and design freedom for building high-performance heat sinks. From electronics to renewable energy, CNC-made heat sinks help manage heat efficiently and keep systems running safely.
