In the world of precision manufacturing, the term "tolerance" refers to the allowable deviation from a specified dimension.
Tolerances are critical in ensuring that parts fit together correctly, function properly, and meet the necessary performance standards.
This article compares the tolerance capabilities of two dominant manufacturing processes: CNC machining and injection molding. We will explore what tolerances are, the differences in their capabilities, when to choose one method over the other, factors affecting tolerances, and applications for both processes.
What Are Tolerances in CNC and Injection Molding?
1. Definition of Tolerances
Tolerances are specifications that define the acceptable limits for dimensions of a component or part.
- General Tolerance: These are defined measurements and the permissible variation—usually expressed as a plus or minus (±) value—indicating how much a dimension can vary from its nominal size.
- Geometric Tolerances: Involves specifying the allowable variation in the shape, form, orientation, and location of a part.
2. Tolerances in CNC Machining
CNC machining is known for its capability to produce components with high precision and tight tolerances1.
- Typical Tolerance Ranges: CNC machining typically achieves tolerances between ±0.001 inches to ±0.005 inches for most applications, while some advanced systems can reach tighter tolerances of ±0.0001 inches.
- Importance in CNC: Precision is critical in CNC machining, especially in industries such as aerospace, medical, and automotive, where component fit and function are vital.
3. Tolerances in Injection Molding
Injection molding involves injecting molten material into a mold, and while it can produce complex parts quickly, its tolerance capabilities differ.
- Typical Tolerance Ranges: Injection molding can generally achieve tolerances of ±0.005 inches to ±0.020 inches, with some specialized molds capable of tighter tolerances. However, achieving very tight tolerances can be more challenging due to the material's cooling and solidification processes.
- Importance in Injection Molding: While precision is necessary, injection molding2 focuses more on the production of large volumes of parts, which may allow for slightly looser tolerances compared to CNC.
Key Differences in Tolerance Capabilities
Understanding the differences in tolerance capabilities between CNC machining and injection molding can help in selecting the appropriate process for manufacturing needs.
| Feature | CNC Machining | Injection Molding |
|---|---|---|
| Precision Levels | High precision, ±0.001" to ±0.0001" | Moderate precision, ±0.005" to ±0.020" |
| Production Volume | Low to medium volume | High volume |
| Complexity Handling | Complex geometries with intricate details | Generally simpler shapes |
| Material Limitations | Selectivity based on material properties | Limited by material shrinkage and properties |
Summary
In summary, CNC machining excels in precision and is capable of achieving tighter tolerances compared to injection molding, which generally focuses on high-volume production with slightly looser tolerances.
When to Choose CNC vs. Injection Molding for Tight Tolerances
Choosing the appropriate manufacturing process for achieving specific tolerances depends on the project requirements.
1. Use CNC Machining When:
- High Precision is Required: If the application is in industries such as aerospace, medical, or automotive that demand extremely tight tolerances, CNC machining is the ideal choice.
- Complex Geometries: Projects requiring intricate and complex geometries benefit from the high precision that CNC machines provide.
- Small Batch Production: When producing prototypes or limited production runs, CNC machining allows for greater flexibility in making design adjustments.
2. Use Injection Molding When:
- High Volume Production: For projects requiring a large number of identical parts, injection molding is more efficient in terms of cost and time.
- Standard Tolerances Are Acceptable: If slightly looser tolerances can be tolerated for the application, injection molding becomes more viable due to its faster cycle times.
- Material Properties are Favorable: When using materials better suited for injection molding processes, such as various plastics, and the application allows for looser tolerances, injection molding might be the way to go.
Summary
Understanding the specific needs of the project—precision, volume, and geometry—will dictate whether CNC machining or injection molding is the more suitable choice when tight tolerances are required.
Factors Affecting Tolerances in Both Processes
Several factors influence the tolerances achievable in CNC machining and injection molding, impacting the choice of manufacturing methods.
| Factor | CNC Machining | Injection Molding |
|---|---|---|
| Machining Techniques | Tool quality, machine calibration | Mold design, injection pressure |
| Material Properties3 | Hardness, thermal stability | Shrinkage rates, resin consistency |
| Environmental Factors | Temperature and humidity | Effects on cooling and solidification |
1. Machining Techniques and Equipment
CNC Machining
- Cutting Tool Quality: The precision of cutting tools affects the tolerances achievable. Dull or worn tools can lead to inaccuracies.
- Machine Calibration: Properly calibrated machines ensure precise cuts, maintaining expected tolerance levels throughout the manufacturing process.
Injection Molding

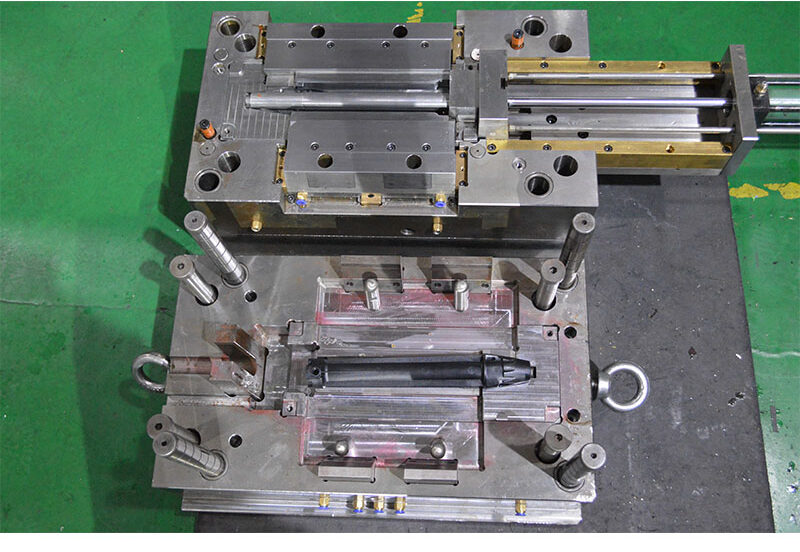

- Mold Design: The complexity of the mold design and its maintenance play a critical role in achieving tolerances. Properly designed injection molds can minimize dimensional fluctuations due to cooling.
- Injection Pressure and Temperature: Variations in these parameters during the injection process can affect shrinkage rates and dimensional accuracy, influencing the tolerance of the final parts.
2. Material Properties
CNC Machining
- Material Selection: The type of material selected impacts how well it can be machined, with harder materials often permitting tighter tolerances.
- Thermal Stability: Materials that maintain dimensional stability when heated are preferred for high-precision CNC applications.
Injection Molding
- Shrinkage Rates: Different plastics have different shrinkage rates, further complicating the ability to achieve consistent tolerances.
- Material Consistency: Variability in resin quality can lead to inconsistencies in shrinkage, affecting tolerances.
3. Environmental Factors
- Temperature and Humidity: Environmental conditions can impact both processes. For CNC machining, changes in temperature can affect the machine's calibration and material characteristics. In injection molding, these environmental conditions can influence cooling times and rates, ultimately affecting tolerances.
Summary
Several factors, including machining techniques, material properties, and environmental conditions, play a crucial role in determining the achievable tolerances in both CNC machining and injection molding.
Applications of CNC and Injection Molding with Different Tolerances
Understanding the applications where each process excels can further guide manufacturers in their choices.
| Application Area | CNC Machining | Injection Molding |
|---|---|---|
| Aerospace Components | Turbine blades, brackets | Dashboards, trims |
| Medical Devices | Surgical instruments, implants | Plastic housings, disposable tools |
| Automotive Parts | Engine components, transmission parts | Interior panels, frame components |
| Consumer Products | Prototypes, custom designs | High-volume plastic items |
1. Applications of CNC Machining
Precision-oriented applications often utilize CNC machining.
- Aerospace Components: Parts such as turbine blades and brackets require extremely tight tolerances for safety and performance.
- Medical Devices: Surgical instruments and implants demand high precision to ensure proper fit and function.
- Automotive Parts: Engine components and transmission parts, which require significant durability and precision, commonly use CNC processes.
2. Applications of Injection Molding
High-volume applications tend to favor injection molding.
- Consumer Products: Items like plastic housings, containers, and toys often utilize injection molding for mass production.
- Automotive Interiors: Components such as dashboard panels and clips that require good aesthetics over tight tolerances benefit from injection molding techniques.
- Household Appliances: Many parts found in appliances, like components for refrigerators and microwaves, are manufactured through injection molding.
Summary
CNC machining suits precision-critical applications requiring tighter tolerances, while injection molding excels in high-volume production of components where slightly looser tolerances are acceptable.
Conclusion
Understanding the differences in tolerances between CNC machining and injection molding is essential for manufacturers seeking to optimize their production processes.
CNC machining offers superior precision and the ability to produce complex geometries with tight tolerances, making it ideal for high-stakes industries such as aerospace and medical. Conversely, injection molding excels in high-volume production and cost efficiency, tailored for applications where general tolerances are sufficient.
-
