Everything You Should Know About Grinding in Machining

Precision parts need more than just cutting—they need perfect surface finish. Grinding delivers exactly that.

Grinding in machining is used to achieve tight tolerances and smooth surface finishes by removing very small amounts of material using abrasive tools.

It’s often the last step in manufacturing. But there’s a lot more to it than meets the eye.

---

What is Grinding in Machining?

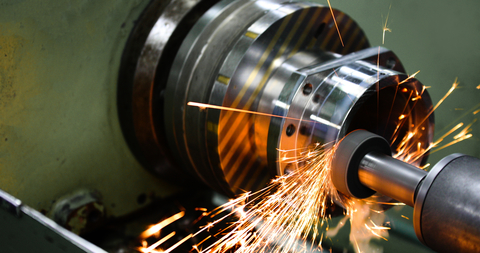

Grinding is a subtractive manufacturing process¹ that uses a rotating abrasive wheel to smooth or shape the surface of a workpiece.

It’s typically used after other machining processes, such as turning or milling, to remove the final microns and improve surface quality or dimensional accuracy.

Grinding works by abrasion, not cutting. The abrasive grains² act like microscopic cutting tools that remove material from the surface.

Dive Deeper: Why Use Grinding Instead of Cutting?

At first glance, grinding and cutting might seem interchangeable. But they serve very different purposes.

Feature	Cutting (Milling, Turning)	Grinding
Material Removal Rate	High	Low
Tolerance	±0.01mm	±0.001mm
Surface Finish	Rougher	Very fine, mirror-like
Typical Use	Shaping	Finishing

Grinding is perfect for precision tools³, aerospace components, and molds that require extremely smooth surfaces. In our workshop, we use grinding to finish tight-fitting bushings and valve seats where micron-level accuracy is required.

---

Common Grinding Techniques and Machines?

Grinding isn’t just one process. There are different types depending on the workpiece and desired result.

Each grinding method uses different tools and motions to shape and smooth the material.

Dive Deeper: Main Grinding Techniques Explained

Let’s break down the common types of grinding:

1. Surface Grinding⁴

• Uses a flat grinding wheel to remove material from flat surfaces.
• Ideal for parallel and smooth surfaces.
• Often used on tool steels and hardened parts.

2. Cylindrical Grinding⁵

• Rotates the workpiece while the wheel moves axially.
• Suitable for shafts, rods, and round parts.
• Can be external or internal (ID/OD grinding).

3. Centerless Grinding⁶

• No need to hold the part in a chuck.
• Workpiece is supported between a grinding wheel and a regulating wheel.
• High-volume, continuous process—perfect for mass production.

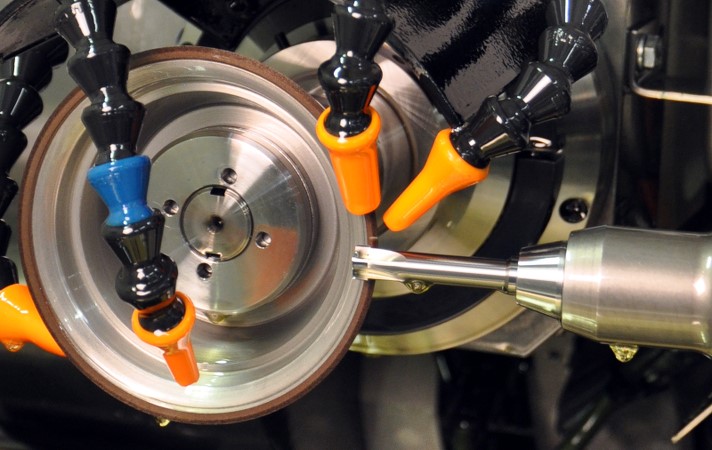

4. Tool and Cutter Grinding

• Sharpens or creates cutting tools like drills and end mills.
• Requires precise control of angles and profiles.

Grinding Type	Best For	Machine Movement
Surface Grinding	Flat parts, molds, tools	Linear X-Y-Z motion
Cylindrical Grinding	Shafts, pins, round tools	Rotational + linear motion
Centerless Grinding	Mass-produced cylindrical parts	Continuous feed
Tool Grinding	Drills, end mills, cutters	Multi-axis contour control

In our factory, we mainly use surface grinders for hardened parts and centerless grinders when making custom pins and sleeves for automation machines.

---

Advantages of Grinding for Precision Parts?

Grinding isn't just about making things smoother. It brings several critical benefits that are hard to achieve with other machining methods.

It provides unmatched accuracy, repeatability, and surface finish—especially for hardened or tough materials.

Dive Deeper: What Makes Grinding So Effective?

Grinding excels in these areas:

1. Tight Tolerances⁷

• Tolerances as tight as ±0.001mm are possible.
• Ideal for final-fit parts in automotive and aerospace.

2. Surface Quality⁸

• Ra values under 0.2 µm are common.
• Used for optical surfaces or sealing faces.

3. Hard Material Machining⁹

• Suitable for hardened steel (up to 70 HRC), ceramics, and carbides.
• Unlike cutting tools, abrasives can cut these materials with less wear.

4. Minimal Distortion

• Removes material slowly, generating less heat and mechanical stress.
• Important for thin-walled or delicate parts.

5. Consistency

• Automated machines and CNC grinders ensure repeatability in batch production.

Benefit	Why It Matters
Tolerance Control	Ensures perfect fit in assemblies
Surface Finish	Reduces friction, improves appearance
Material Versatility	Allows grinding of very hard or brittle metals
Part Stability	No bending or warping from machining forces

One example from our own projects: we machined a batch of stainless steel check valve components. After turning, the final sealing surface required surface grinding to achieve the needed Ra 0.2 finish—something impossible with turning alone.

---

Key Considerations: Tools, Speeds, and Coolants?

Grinding may seem simple, but a lot depends on selecting the right wheel, controlling speeds, and applying the right coolant.

Even minor mistakes in these areas can cause burns, poor finish, or rapid wheel wear.

Dive Deeper: How to Optimize Your Grinding Process

1. Choosing the Right Wheel

Key parameters include:

Factor	Options	Notes
Abrasive Material	Aluminum Oxide, CBN, Diamond	CBN/Diamond for hard materials
Grit Size	46–120+	Coarser for roughing, finer for finish
Bond Type	Resin, Vitrified, Metal	Affects wear rate and shape stability
Wheel Shape	Straight, Cup, Dish, etc.	Depends on part geometry

2. Machine Speeds and Feeds

• Wheel Speed: Typically 30–60 m/s.
• Work Speed: Must be balanced to avoid chatter or burns.
• Feed Rate: Light passes are better for fine finish.

3. Coolants and Lubrication

Coolant plays a vital role in:

• Cooling the part to prevent burning.
• Removing swarf (metal dust) from the grinding area.
• Reducing wheel wear and maintaining sharpness.

In our shop, we use water-soluble synthetic coolant for steel grinding, but for carbide tools, we switch to oil-based coolant to avoid chemical reactions that wear the wheel.

---

Tips for Achieving High Surface Quality?

Even with the best tools, surface quality can suffer if you overlook the fine details.

Achieving a mirror-like finish takes control, patience, and sometimes, a bit of experimentation.

Dive Deeper: 5 Pro Tips for Better Grinding Results

1. Dressing the Wheel

• Regularly "dress" the wheel using a diamond dresser.
• This refreshes the cutting surface and restores shape.

2. Avoid Overheating

• Look for discoloration (blue or brown) on your part—this means it’s overheated.
• Reduce feed or increase coolant flow.

3. Use Fine Grit for Finishing

• For surface finish under Ra 0.4, use grit size 80 or finer.

4. Keep Everything Balanced

• Wheel imbalance can cause vibration.
• Always balance the wheel before mounting.

5. Watch for Glazing

• If your wheel stops cutting efficiently, it may be glazed (loaded with swarf).
• Dress it more often or switch to a coarser grit.

Tip	Result
Dressing the wheel	Keeps cut aggressive and consistent
Using coolants	Prevents heat damage and warping
Monitoring grit size	Controls surface roughness
Checking balance	Reduces chatter and tool wear
Avoiding glazing	Maintains efficiency and finish

We recently helped a client fix an issue with chatter marks on a hardened steel gear. After balancing the wheel and switching to a finer grit, the surface finish went from Ra 1.2 to Ra 0.3—without changing machines.

Conclusion

Grinding is more than just a finishing step—it’s a precision process that shapes and defines the final quality of a part.

By understanding grinding methods, choosing the right tools and parameters, and applying best practices, you can consistently achieve tight tolerances and beautiful surface finishes in your CNC machining projects.
