Knurling is a manufacturing process used to create raised patterns or ridges on the surface of cylindrical parts. This technique is widely employed in various industries due to its effectiveness in enhancing grip and aesthetic appeal of components.
This article will explore the knurling process, the different types of knurling patterns, applications and benefits, materials suitable for knurling, as well as challenges and best practices associated with the process.
What is Knurling?

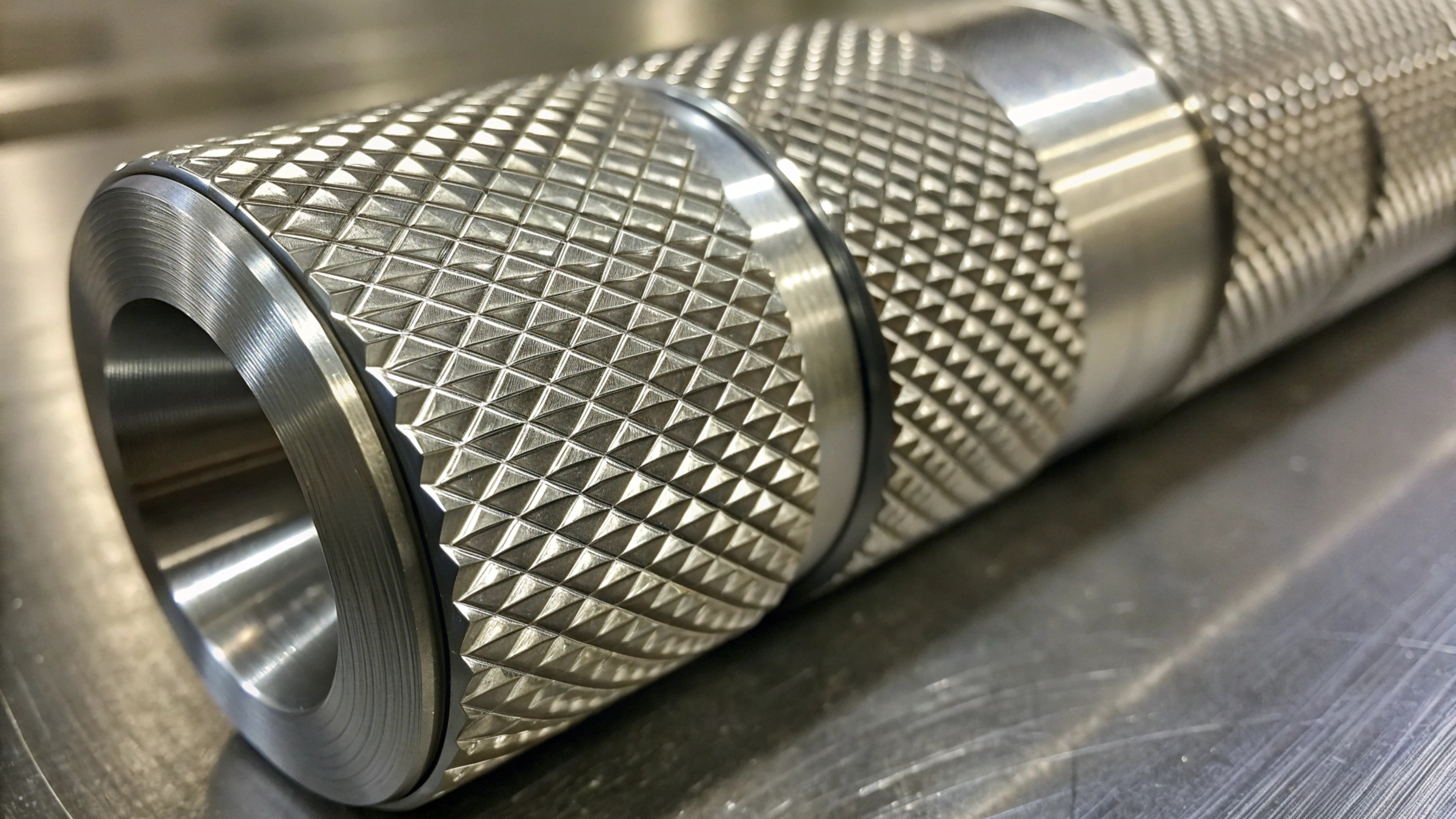

Knurling is a machining process that creates ridges or grooves on cylindrical workpieces using a knurling tool. It enhances grip on components like knobs and handles, providing a textured surface for better handling.
The knurling process1 not only improves functionality but also adds visual interest to the product. It is particularly important in applications where a secure grip is essential, such as in manual tools or mechanisms. Knurling can be performed on various materials, including metals and plastics, making it versatile across different manufacturing contexts.
How the Knurling Process Works
Steps in the Knurling Process
Knurling is typically performed on a lathe or milling machine. The process can be divided into several key steps:
-
Preparation of the Workpiece: The part to be knurled is secured in a lathe or a CNC machine. It should be properly aligned and mounted to ensure accurate machining.
-
Selection of the Knurling Tool: Knurling tools come in various styles and geometries, corresponding to different knurl patterns. The selection of the right tool is essential for achieving the desired result.
-
Setting Cutting Parameters: The machine's speed and feed rate must be set based on the material and the type of knurling being performed. These parameters significantly influence the quality of the knurl pattern.
-
Engaging the Knurling Tool: The knurling tool2 is brought into contact with the rotating workpiece. The tool exerts force to compress the material, creating ridges and grooves as it moves along the surface.
-
Inspection and Finishing: After the knurling is complete, the workpiece may require cleaning or deburring to remove any sharp edges or metal shavings. Quality checks ensure that the knurl meets specifications.
Types of Knurling Machines
Knurling can be performed using various types of machinery, including:
-
Manual Lathes: Suitable for small-scale production or parts where minimal knurling is required.
-
CNC Lathes: Ideal for high-precision applications and larger quantities due to programmable settings that optimize the knurling process.
-
Dedicated Knurling Machines: Specialized machines that perform knurling at a faster rate and with enhanced precision.
Common Types of Knurling Patterns
Knurling patterns come in a variety of designs, each serving different functional and aesthetic purposes. The most common types of knurling patterns include:

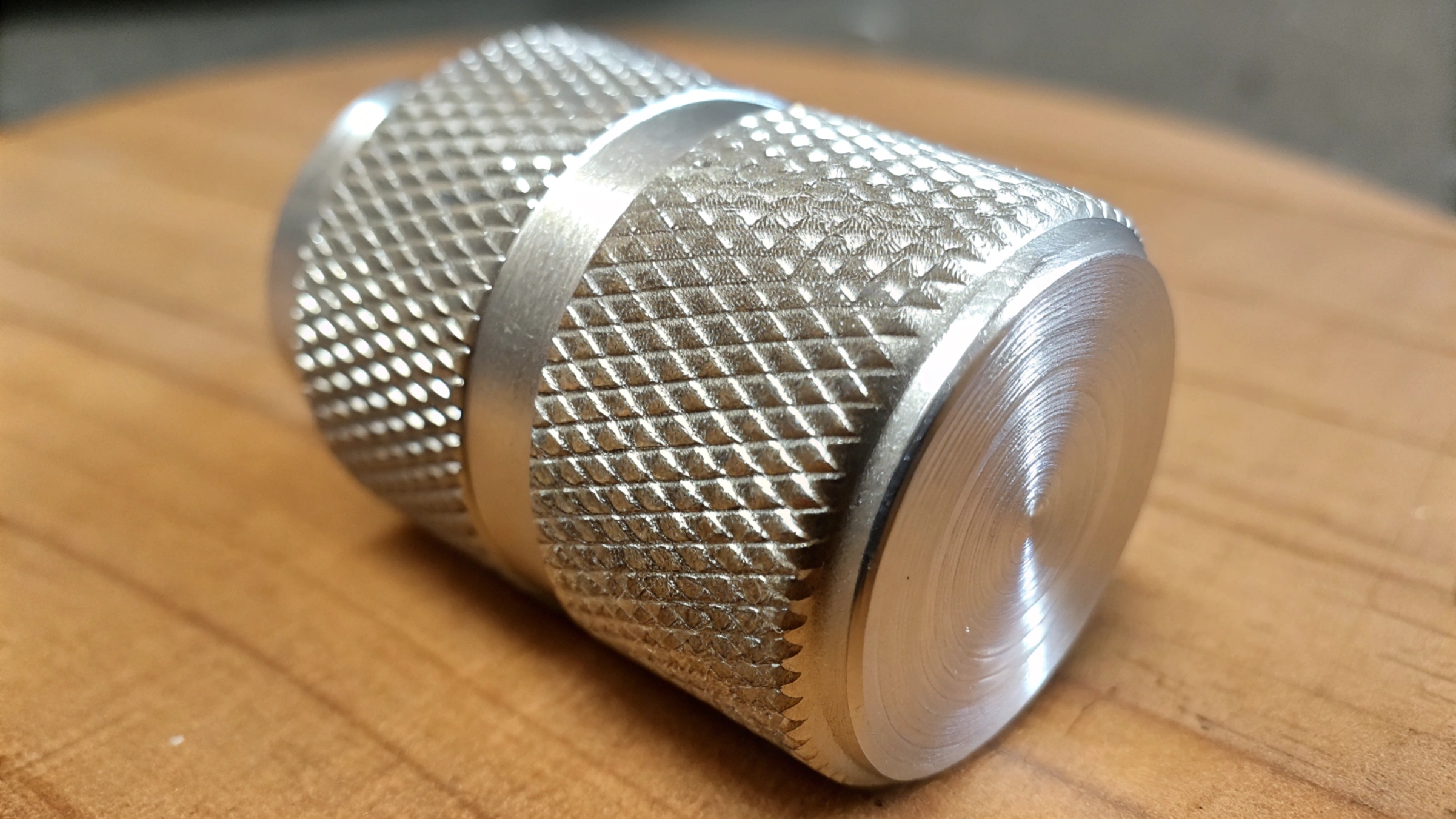

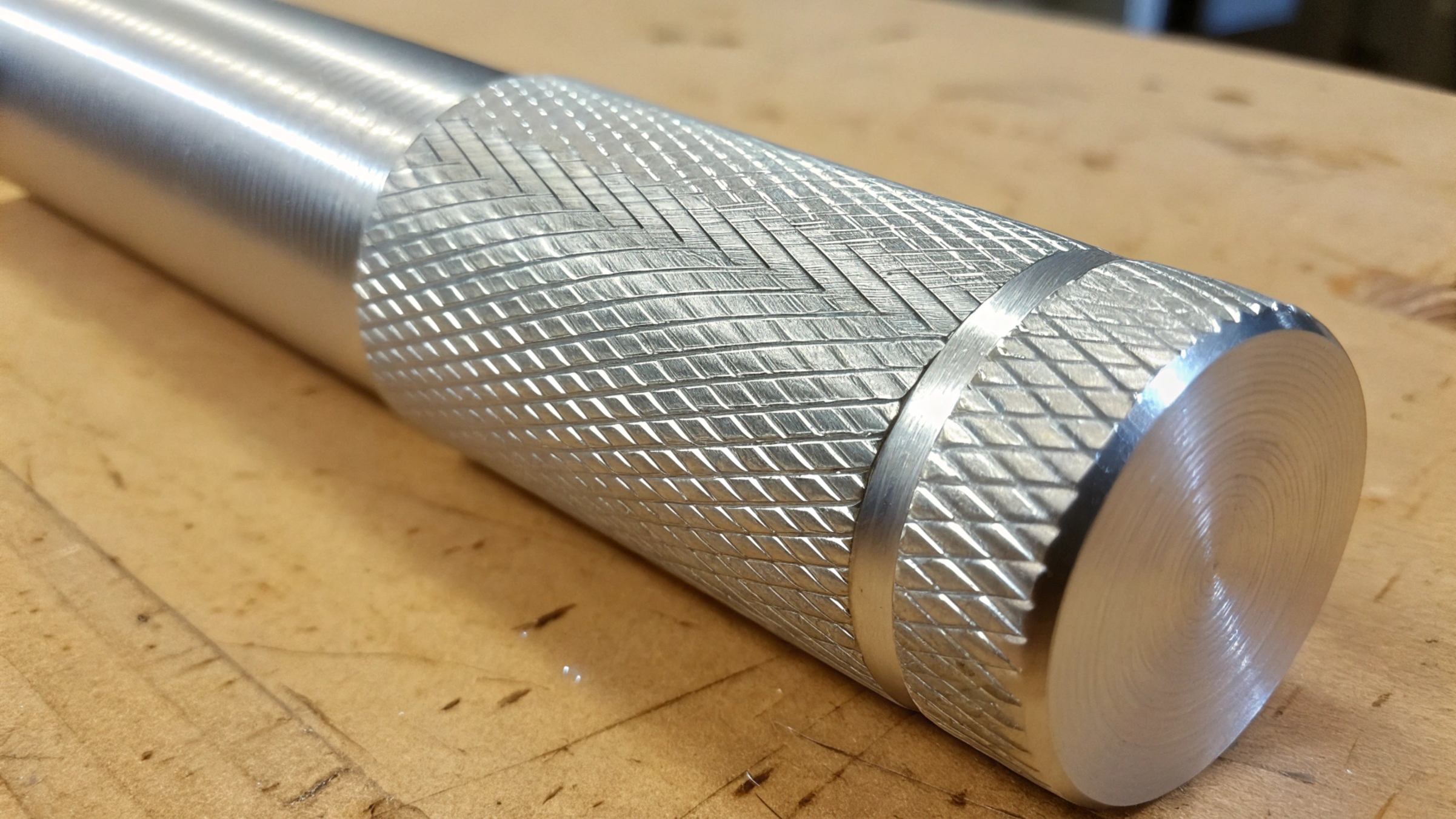

1. Straight Knurling3
Description: This pattern features straight, parallel ridges that run along the length of the workpiece.
Applications: Often used on handles, knobs, and grips where a linear texture enhances grip.
2. Cross Knurling4
Description: Cross knurling involves creating crisscross patterns that intersect at various angles.
Applications: Ideal for parts requiring a non-slip grip in multiple directions. Commonly found in tools that require manual operation.
3. Diamond Knurling5
Description: This pattern creates a diamond-shaped texture, consisting of raised points that provide both functionality and aesthetic appeal.
Applications: Frequently used in decorative applications, such as trim pieces or high-end equipment, where visual impact is essential.
4. Circular Knurling
Description: Circular knurling produces concentric circles on the workpiece surface.
Applications: Used primarily in rotating knobs or components where grip enhancement through circular design is advantageous.
5. Threaded Knurling
Description: This pattern involves creating helical ridges that mimic threads.
Applications: Often used to create parts that need to lock or fit into one another, such as screw heads or threaded handles.
Applications of Knurling in Manufacturing
Knurling finds extensive use across various industries, providing significant benefits in both functional performance and aesthetic appeal. Key application areas include:
1. Hand Tools

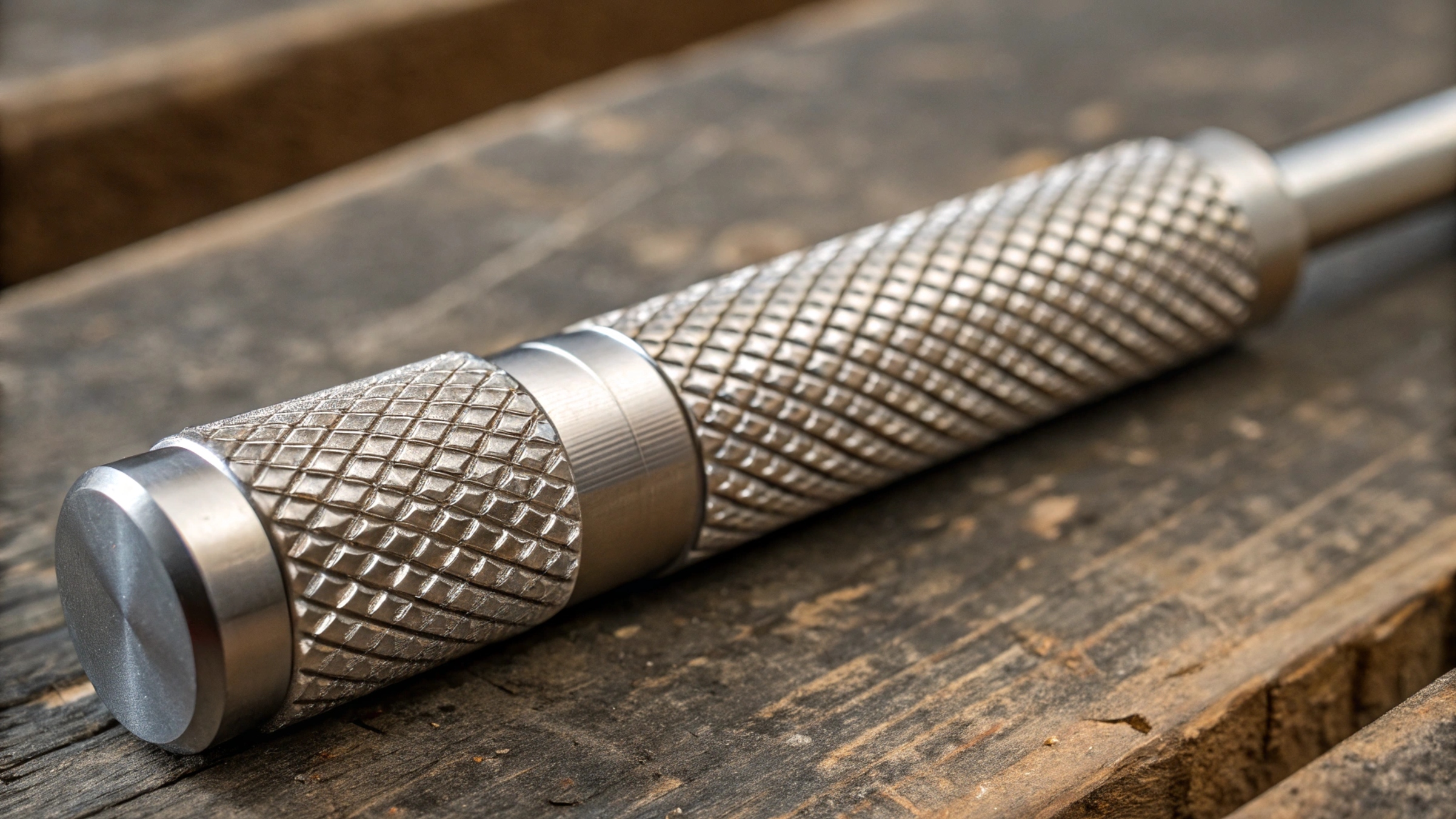

Hand tools, such as screwdrivers, wrenches, and pliers, often feature knurled grips6 to improve user handling. The enhanced grip reduces slippage, making tools safer and easier to use.
2. Automotive Components
Knurling is commonly applied to parts like knobs, levers, and handles within vehicles, improving ergonomics and control for drivers and passengers.
3. Medical Devices

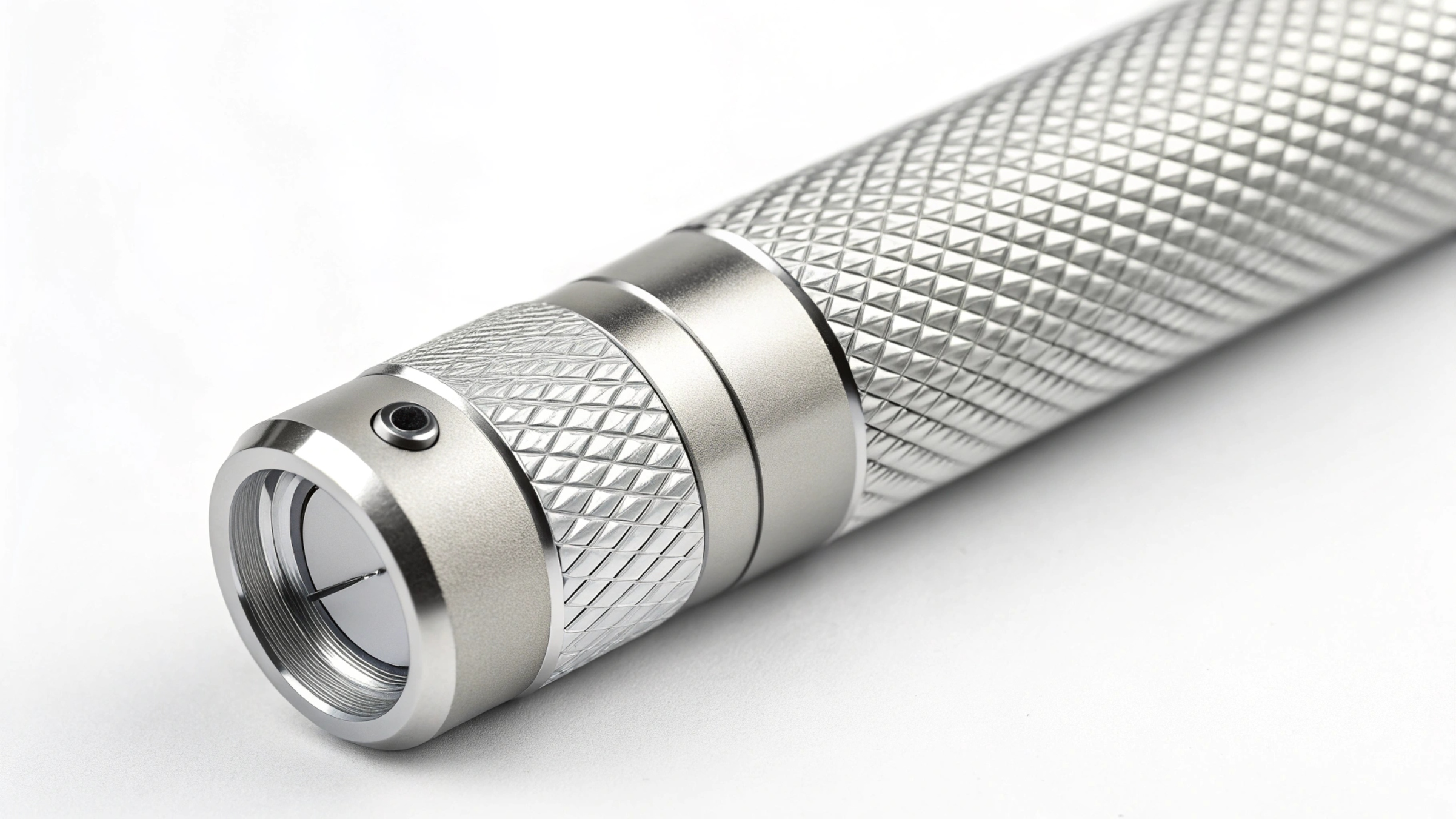

In the medical field, knurling is utilized on devices such as surgical instruments and controls, ensuring a secure grip in critical situations and improving user safety.
4. Electronics
Knurling can be found on knobs for electronic devices, providing tactile feedback and allowing precise control while maintaining an aesthetic appeal.
5. Furniture and Fixtures
In the furniture industry, knurled surfaces are often seen on drawer pulls, cabinetry hardware, and lighting fixtures, contributing to both function and design.
Materials Suitable for Knurling
Knurling can be effectively performed on a variety of materials, though certain materials yield better results than others. Suitable materials for knurling include:
1. Metals
-

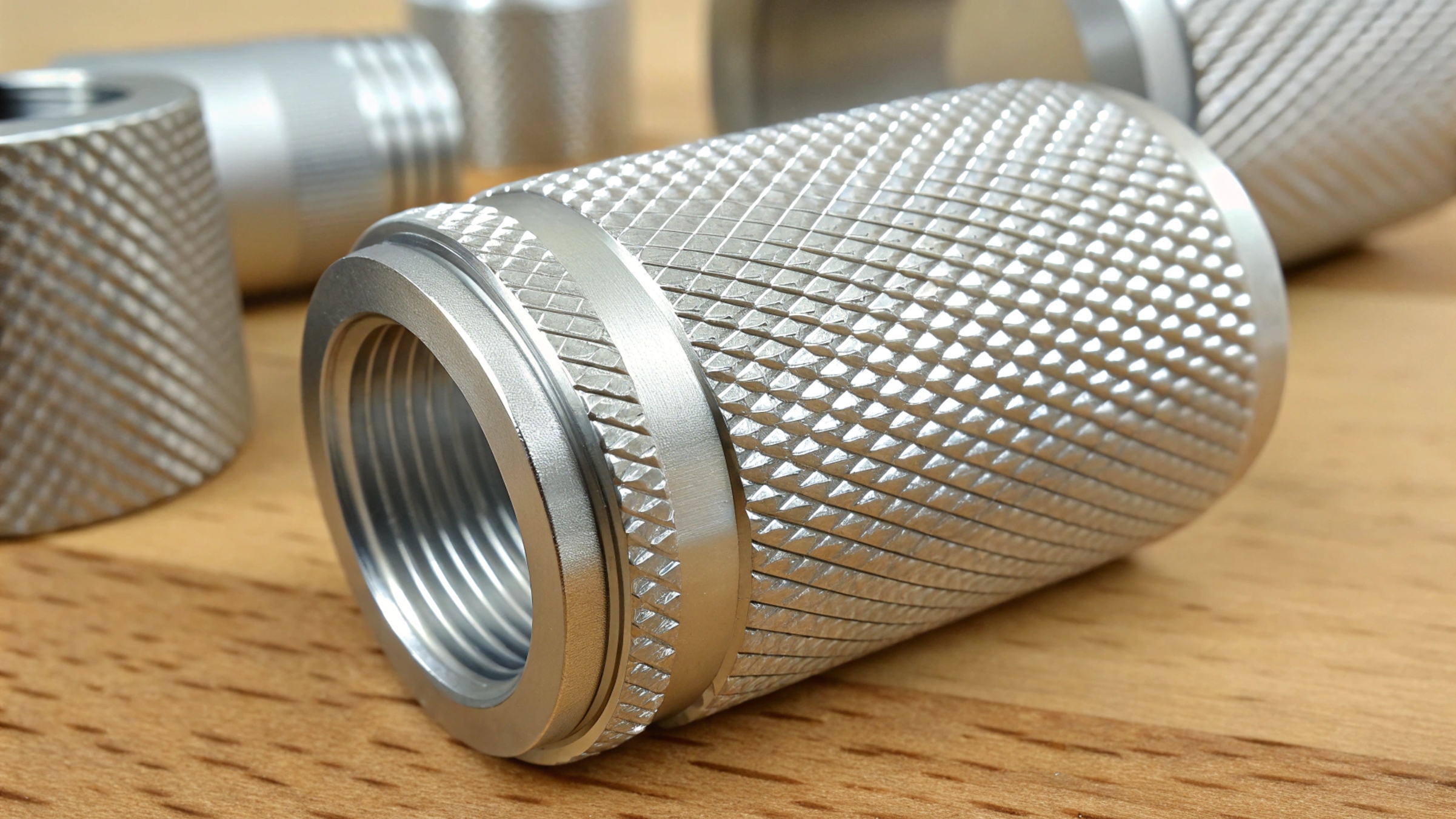

Aluminum7: Lightweight and relatively soft, aluminum is easy to knurl and offers excellent grip, making it a popular choice for tooling applications.
-
Steel: Commonly used in hand tools due to its strength, steel can hold complex knurl patterns and provide a robust grip.
-
Brass: Often used for decorative applications, brass provides a visually appealing finish and excellent knurling results.
2. Plastics
Plastics such as nylon and polycarbonate can also be knurled, allowing for the creation of lightweight parts with enhanced grip. However, attention must be paid to the properties of the specific plastic being processed, as some are more suitable for knurling than others.
3. Composites
Certain composite materials can be knurled, depending on their composition and properties. Knurling on composites can enhance grip while maintaining lightweight advantages.
Key Benefits of Knurling
Knurling offers several advantages that make it an essential manufacturing process:
1. Improved Grip8
The primary benefit of knurling is the enhanced grip it provides to components, making them easier and safer to handle. This is particularly critical in applications requiring precision and control.
2. Aesthetic Appeal
Knurling adds a decorative element to components, enhancing their appearance and making them suitable for consumer-facing products.
3. Increased Surface Area
Knurling increases the surface area of an item, which can enhance the interaction between components in assemblies or improve friction where necessary.
4. Cost-Effectiveness
Knurling is a relatively quick and efficient process that can be integrated into existing manufacturing workflows. This contributes to reduced production times and overall cost savings.
5. Customization
With various patterns and depths available, manufacturers can customize knurl designs to meet specific functional and aesthetic requirements, enhancing product differentiation.
Challenges and Best Practices in Knurling
While knurling is a beneficial process, several challenges may arise, and best practices can help avert these issues:
1. Tool Wear9
Knurling tools can experience significant wear due to the forces involved in forming the ridges. Regular inspection and timely replacement of tools are critical to maintain quality.
2. Material Properties
Different materials may respond differently to knurling processes. Understanding the material's ductility, hardness, and overall machinability is crucial to achieving consistent results.
3. Alignment and Setup
Proper alignment of the workpiece and knurling tool is essential to avoid defects such as misaligned patterns, which can compromise functionality and aesthetic quality.
4. Feed Rate and Speed
The choice of feed rate and spindle speed can impact the quality of the knurl. Manufacturers should optimize these parameters based on material and knurling type to achieve the best results.
5. Cleaning and Deburring
After knurling, parts may require cleaning to remove chips or burrs that could interfere with subsequent operations. Effective cleaning procedures contribute to overall product quality.
Conclusion
Knurling is an essential manufacturing process that enhances the functionality and aesthetics of various components. By understanding the intricacies of the knurling process, the different types of patterns available, and the range of applications, manufacturers can make informed decisions that improve product quality and user experience.
-
