The Most Common Challenges in CNC Machining and How to Overcome Them

CNC machining can produce amazing precision, but only when problems like tolerance, tooling, and materials are well controlled.

CNC machining challenges include tight tolerances, complex parts, tool wear, material issues, and consistency in mass production.

These problems are common, but every one of them has a clear path to a solution.

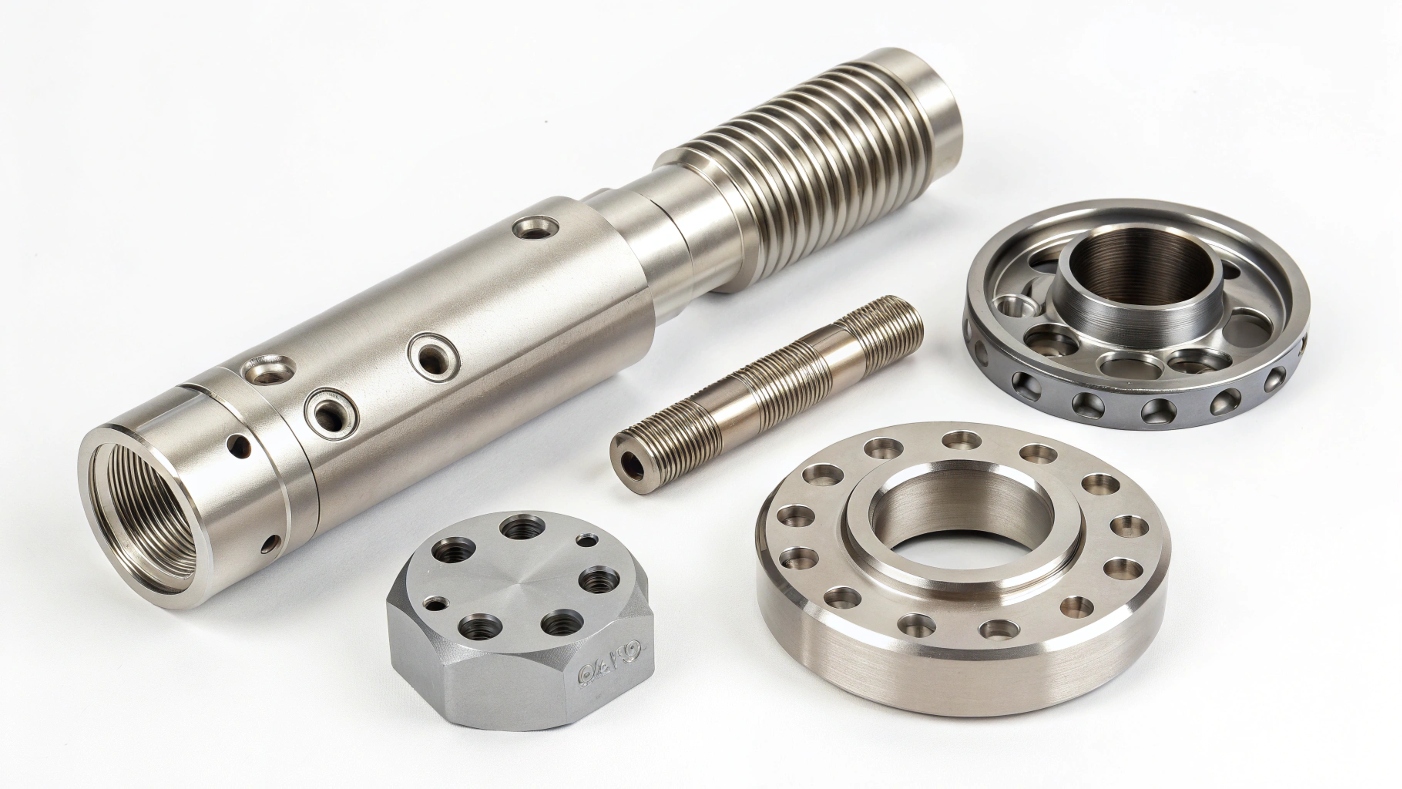

Maintaining Tight Tolerances?

Tight tolerances are often required in aerospace, medical, and automotive parts. But keeping them in real production is not easy.

Maintaining tight tolerances is critical to part performance but requires precise tools, stable setups, and well-controlled environments.

Dive Deeper: Why Tight Tolerances¹ Are So Hard to Keep

Tolerances as small as ±0.01mm might sound like a small detail, but in CNC machining, they can mean the difference between success and failure. Here’s why:

1. Thermal Expansion

Metals expand when they get hot. During high-speed machining, heat builds up and causes dimensional changes in the part and even the machine. Without accounting for this, a precise hole can quickly go out of spec.

2. Tool Deflection

When cutting tools face resistance, they bend slightly. Even a tiny deflection changes the final dimension of the part. This is especially true when machining long features or hard materials.

3. Machine Calibration²

A machine that’s slightly out of alignment or has axis backlash can produce inconsistent results. Regular calibration and maintenance are non-negotiable for tight-tolerance work.

4. Fixture Stability

If the part isn’t clamped securely, even slight movement during machining will lead to deviation from the desired tolerance.

Cause	Effect on Tolerance	How to Fix
Thermal Expansion	Inaccurate dimensions	Use coolant, control temperature
Tool Deflection	Undersized/oversized features	Use rigid tools, shorten overhangs
Machine Misalignment	Inconsistent parts	Regular calibration and alignment checks
Poor Workholding	Movement during cutting	Use high-quality fixtures and clamps

In our factory, we've built a habit of checking our machines daily before starting tight-tolerance projects. This habit alone saved us from reworking hundreds of aerospace fittings last year.

Dealing with Complex Geometries³?

Complex part shapes require careful planning, multi-axis movement, and creative workholding.

Parts with deep pockets, sharp internal corners, or organic curves pose programming and machining challenges.

Dive Deeper: The Hidden Issues with Complicated Part Designs

Clients often design parts with tight internal corners, thin walls, or undercuts without realizing the difficulty of producing them. Machining these complex features presents multiple challenges:

1. Tool Access

Some shapes are just physically hard to reach. Even with long tools, deep features can lead to chatter or deflection.

2. Toolpath Programming

Generating a smooth and collision-free path in 3D space for multiple features on multiple faces isn’t simple. This can take hours and requires high-end CAM software.

3. Special Fixtures

A standard vise can’t always hold a curved part or an angled surface securely. Complex parts often require custom fixtures, which take time and cost money.

4. Multi-Axis Machining

Some shapes can only be reached using 4-axis or 5-axis machines. While powerful, these machines require skilled operators and careful planning.

Problem	Solution	Notes
Tool Access	Use long tools or 5-axis machining	Shorter tools preferred to reduce vibration
Toolpath Complexity	Advanced CAM software and simulation	Include collision detection
Fixture Limitations	Design custom fixtures	Modular workholding saves setup time
Geometry Limitations	Suggest design changes (DFM review)	Improve machinability without changing function

We once had a client send a bracket design with a 0.5mm internal radius in a 50mm deep pocket. We had to redesign the toolpath, adjust the tool, and work closely with the client to round the corners just slightly—it saved the project.

---

Tool Wear and Breakage?

Tools don’t last forever. In fact, aggressive cutting, poor cooling, or hard materials can wear them out fast.

Tool wear affects part quality, increases cost, and leads to unpredictable failures if not monitored closely.

Dive Deeper: How to Spot and Prevent Tool Failure

Understanding how tools wear—and planning for it—can save hours of lost production. Here’s what I’ve learned through years of broken end mills and dull inserts:

1. Tool Material Matters

High-speed steel (HSS) tools are cheap but wear out fast. Carbide tools last longer and can handle harder materials and higher speeds. Coated tools (like TiN or AlTiN) reduce friction and heat.

2. Improper Speeds and Feeds

If you run tools too fast or apply too much load, heat builds up, causing the cutting edge to dull or chip. Slower speeds and proper feeds extend tool life.

3. Coolant Usage

Coolant keeps the tool and workpiece cool, flushes away chips, and reduces wear. Dry machining may be possible for plastics, but most metals need consistent cooling.

4. Tool Monitoring

Using CNC software or sensors to track tool wear over time lets you change tools before they fail. Visual inspection between batches also helps.

Tool Issue	Cause	Prevention
Wear and Dulling	Friction, poor cooling	Use coated tools, optimize speed/feed
Chipping or Cracks	Hard materials, wrong toolpath	Apply gradual cuts, inspect materials
Unexpected Breakage	Poor tool quality or fatigue	Buy high-quality tools, use torque limits
Overheating	Dry machining or poor coolant delivery	Ensure coolant reaches the cutting zone

In our shop, we’ve standardized carbide tooling for stainless steel projects. The initial cost is higher, but we get 2–3x longer tool life, and fewer part rejections.

Material-Related Machining Issues?

Not all materials cut the same way. Machining aluminum is very different from stainless steel, titanium, or plastics.

Different materials require different speeds, tools, and machining strategies to achieve clean, precise results.

Dive Deeper: Know the Material, Avoid the Mistake

Material selection³ plays a big role in machining performance. Here are some material-specific challenges and how to handle them:

1. Soft Materials⁴ (Aluminum, Plastics)

These can melt or smear if cut too slowly or with dull tools. Aluminum chips can also clog the cutter flutes.

2. Hard Materials⁵ (Stainless Steel, Titanium)

These require slower speeds, high tool pressure, and better cooling. They dull tools quickly and generate a lot of heat.

3. Abrasion

Some materials like fiberglass, cast iron, or carbon fiber are abrasive. They wear out tools quickly and create dust, so good ventilation and protective gear are needed.

4. Material Inconsistency

Sometimes, the same material from different suppliers behaves differently. Internal stresses, inclusions, or impurities can cause warping or poor finishes.

Material Type	Challenge	Tip
Aluminum	Chip buildup, melting	Use sharp tools, high speeds, chip evacuation
Stainless Steel	Work hardening, high heat	Low speeds, coated tools, lots of coolant
Plastics	Melting, tool clogging	Low feed rate, high RPM, sharp tools
Cast Iron	Abrasive, dusty	Use carbide tools, good ventilation

One time we received a batch of stainless steel that was unusually tough. We had to slow down the process, swap out three tools, and adjust our coolant mix just to finish the job cleanly.

---

Ensuring Consistent Quality in Production?

Making one perfect part is easy. Making 1,000 identical parts is where it gets tough.

Consistency in CNC machining requires stable processes, routine checks, and good documentation.

Dive Deeper: Building Quality into Every Step

Consistency means setting up your CNC process so that the first part and the 1000th part are nearly identical. Here’s how we ensure that:

1. First Article Inspection⁶

Before full production, we always machine a single “first article” and check all dimensions. This helps catch errors early.

2. Process Documentation

We record all tool settings, speeds, feeds, and clamping methods. That way, anyone can replicate the setup in the future.

3. In-Process Inspection

During production, we check dimensions at regular intervals. This helps catch wear, drift, or tool breakage before too many parts are affected.

4. Post-Processing QC⁷

After all machining is done, a quality check ensures nothing was missed. Visual inspection, dimensional checks, and functional tests are part of this.

Stage	Quality Control Action
First Article	Full inspection of first part
Setup Documentation	Record every setting for repeatability
In-Process Checks	Check critical dimensions every few pieces
Final QC	Visual, dimensional, and functional testing

We’ve invested in digital gauges and inspection software to streamline this. It gives us live data from the shop floor, and lets our clients trust that their parts meet spec—every time.

---

Conclusion

CNC machining comes with many challenges—from keeping tight tolerances to managing tool life and difficult materials. But by understanding each issue and applying the right practices, we can keep quality high and waste low in every production run.
