The Role of CNC Machining in Medical Device Manufacturing

CNC machining has revolutionized various industries, and its impact on medical device manufacturing is particularly significant.

Precision, reliability, and consistency are paramount in the medical field, making CNC machining an indispensable manufacturing process for medical devices.

In this article, we will explore the importance of CNC machining in medical device production, the key materials used, precision requirements¹, challenges faced, and various applications of this technology.

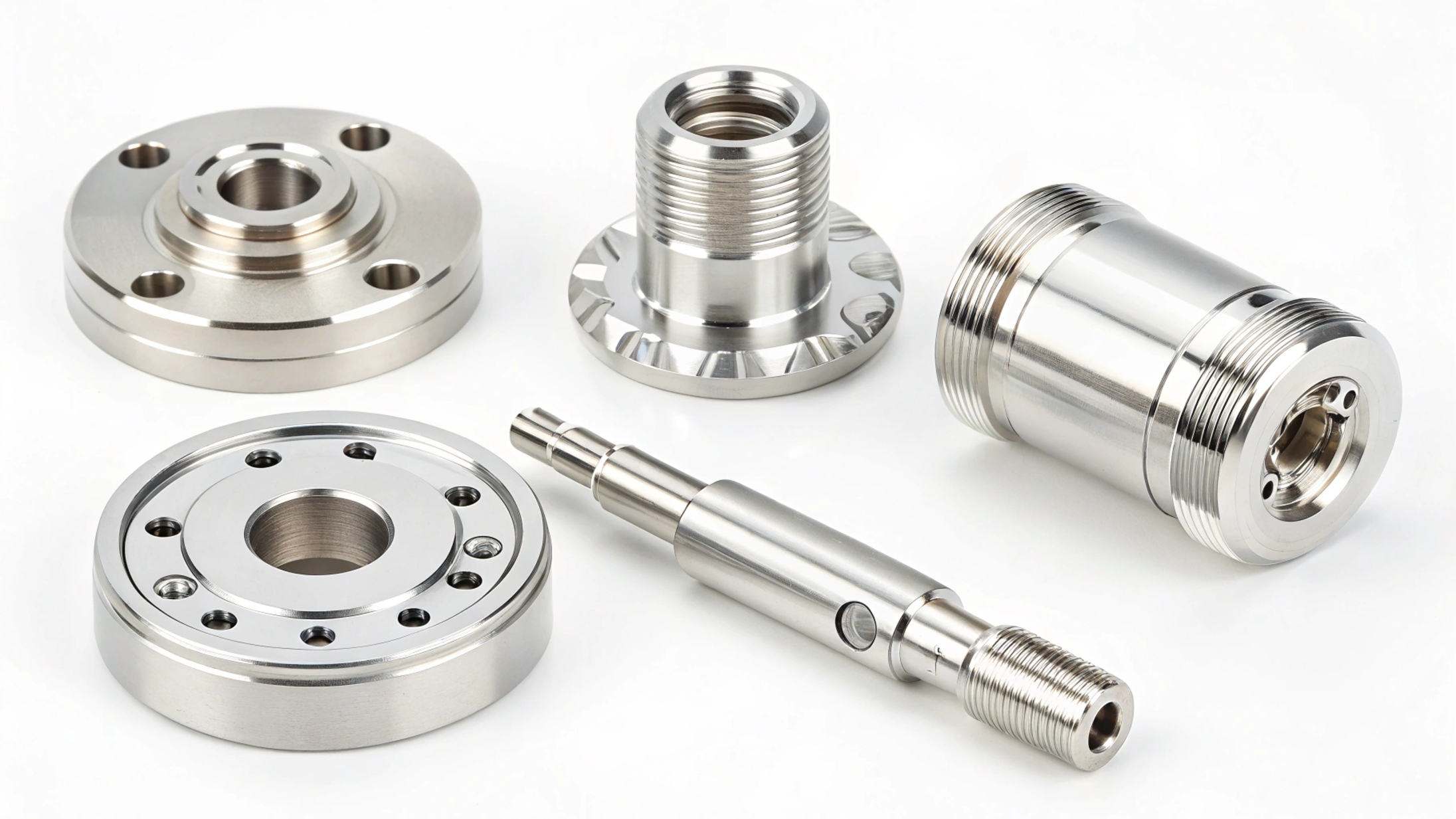

Why CNC Machining is Crucial for Medical Device Production

CNC machining offers several advantages that are critical to the manufacturing of medical devices.

1. High Precision and Accuracy

Medical devices must be manufactured to exceedingly stringent tolerances.

• Tight Tolerances: CNC machines can achieve tolerances of ±0.001 inches or better, ensuring that each component fits perfectly within a larger assembly.
• Reproducibility: CNC machining can replicate intricate details across multiple units without any variations, which is crucial for maintaining device consistency.

2. Complex Geometries

The nature of medical devices often requires intricate shapes and designs that standard manufacturing processes cannot achieve.

• 3D Capabilities: CNC machining allows for the production of complex geometries necessary for advanced medical applications, such as implants and surgical instruments.
• Adaptability: The flexibility of CNC programming enables rapid adjustments to designs, allowing manufacturers to respond to new medical requirements or innovations.

3. Material Versatility

CNC machining supports a wide array of compatible materials, which is essential for various medical applications.

• Diverse Material Range: From polymers to metals, CNC machining can work with materials that meet stringent health regulations and performance standards.
• Customization: This versatility allows manufacturers to tailor components based on specific properties required for different medical applications.

4. Rapid Prototyping and Production

CNC machining accelerates the prototyping process, enabling quicker development and testing cycles.

• Fast Iterations: Engineers can rapidly prototype new designs, allowing for faster validation and adjustments as needed.
• Scale Production: Once validated, scales can be quickly transitioned from low volume to larger production runs without significant changes to the process.

---

Key Materials Used in Medical Device CNC Machining

The selection of materials in CNC machining for medical devices is critical to performance and regulatory compliance.

1. Metals

Metals are often used in medical devices due to their mechanical strength and durability.

• Stainless Steel²: This is a prevalent material in medical devices due to its corrosion resistance, strength, and biocompatibility. It is commonly used for surgical instruments and implants.
• Titanium: Titanium’s excellent strength-to-weight ratio and corrosion resistance make it a favorable choice for orthopedic implants and dental devices.
• Cobalt-Chromium Alloys: Recognized for their strength and wear resistance, these are often used in high-stress applications such as hip and knee implants.

2. Polymers

Polymers offer versatility and customization in manufacturing medical devices.

• Polycarbonate³: Known for its strength and impact resistance, polycarbonate is frequently used in patient contact devices, such as housings for monitors.
• Polypropylene: This polymer is commonly used in disposable medical devices like syringes due to its machinability and chemical resistance.
• PTFE (Teflon): This material is known for its non-stick properties, making it ideal for applications in medical tubing and valves.

3. Composites

Composite materials are increasingly being used in medical device manufacturing.

• Carbon Fiber-Reinforced Plastics⁴: These composites offer high strength while remaining lightweight, which is particularly beneficial in designing prosthetics and orthopedic devices.
• Glass Fiber Composites: Implemented for their high strength-to-weight ratio, these materials are useful in creating surgical instruments and devices requiring lower weights.

Summary

The materials used in CNC machining for medical devices must align with the stringent demands of the industry, including biocompatibility, durability, and the ability to withstand sterilization processes.

---

Precision and Tolerance Requirements in Medical Manufacturing

1. Importance of Precision

Precision is critical in medical device manufacturing, directly affecting patient safety and device functionality.

• Regulatory Compliance: Medical devices must comply with various regulatory standards that often mandate strict tolerance levels⁵. Non-compliance can lead to significant legal and financial consequences.
• Safety and Functionality: Devices that do not adhere to precise tolerances can result in malfunction or injury to patients.

2. Tolerance Levels

Tolerance requirements vary depending on the device and material used.

• Typical Tolerance Ranges: Most medical components require tolerances within ±0.001 inches, but some might need tighter specifications depending on their application.
• Testing and Validation: Each product must undergo rigorous testing to ensure it meets specified tolerances, often employing advanced measurement techniques like Coordinate Measuring Machines (CMM).

3. Advantages of CNC Machining

The use of CNC machines ensures consistent adherence to these precision specifications.

• Advanced Quality Control: Integrated sensors and software in CNC machines allow for real-time monitoring of tolerance levels during production.
• Reduced Human Error: Automation minimizes human errors that can occur during manual machining processes, ensuring higher consistency and reliability.

Summary

The intricate relationship between precision and safety in medical device manufacturing relies heavily on CNC machining's capabilities to meet stringent tolerances.

Challenges and Solutions in CNC Machining for Medical Devices

While CNC machining offers numerous advantages, it also presents specific challenges in medical device manufacturing.

1. Material Limitations

Different materials may have unique challenges in CNC machining.

• Hardness: Harder materials may cause increased tool wear, necessitating frequent tool changes and possibly affecting production timelines.

Solution: Utilizing advanced tooling materials such as carbide or coated tools can improve performance and lifespan when machining hard materials.

2. Complex Geometries

The complexity of designs can complicate the machining process.

• Intricacy of Parts: Medical devices often feature intricate designs, which can create challenges in producing parts accurately.

Solution: Advanced CNC technology, including multi-axis machining, allows for the production of complex geometries with enhanced accuracy.

3. Strict Regulatory Compliance

Manufacturers face extensive regulations that can complicate the production timeline.

• Regulatory Landscape: Adherence to standards from bodies such as the FDA can lengthen the approval process for new medical devices.

Solution: Implementing comprehensive documentation and quality control processes ensures compliance is met throughout production, speeding up regulatory review timelines.

Summary

The challenges posed by material properties, complex geometries, and regulatory compliance⁶ in medical device manufacturing can be effectively addressed through advanced technology and rigorous quality management.

---

Applications of CNC Machining in Medical Device Design

CNC machining has a wide range of applications in the design and manufacture of medical devices.

1. Surgical Instruments

Surgical instruments require precise manufacturing for safe and effective performance.

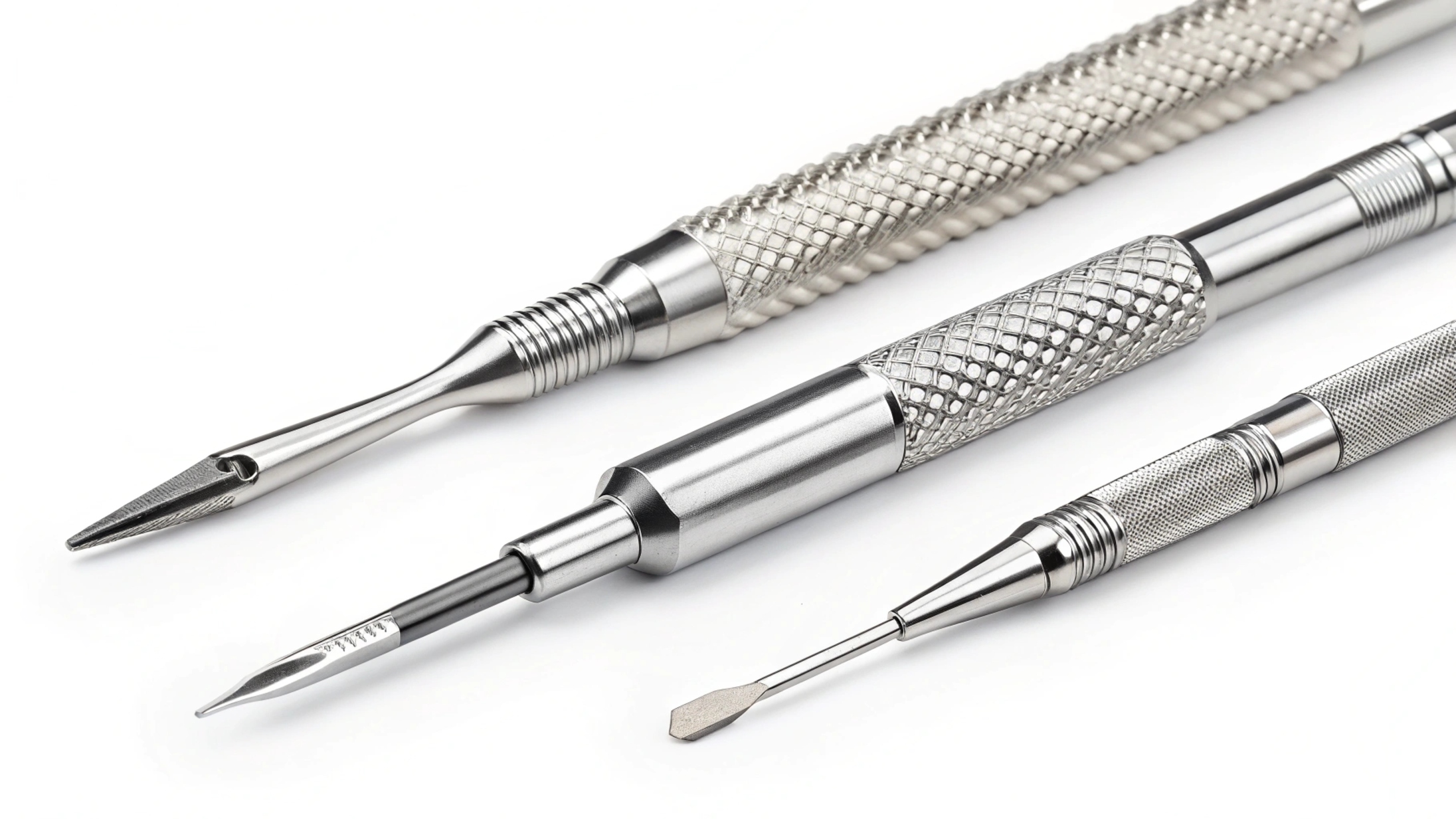

• Production: CNC machining is used to produce blades, forceps, and other surgical tools that necessitate high precision and consistent quality.

2. Implants

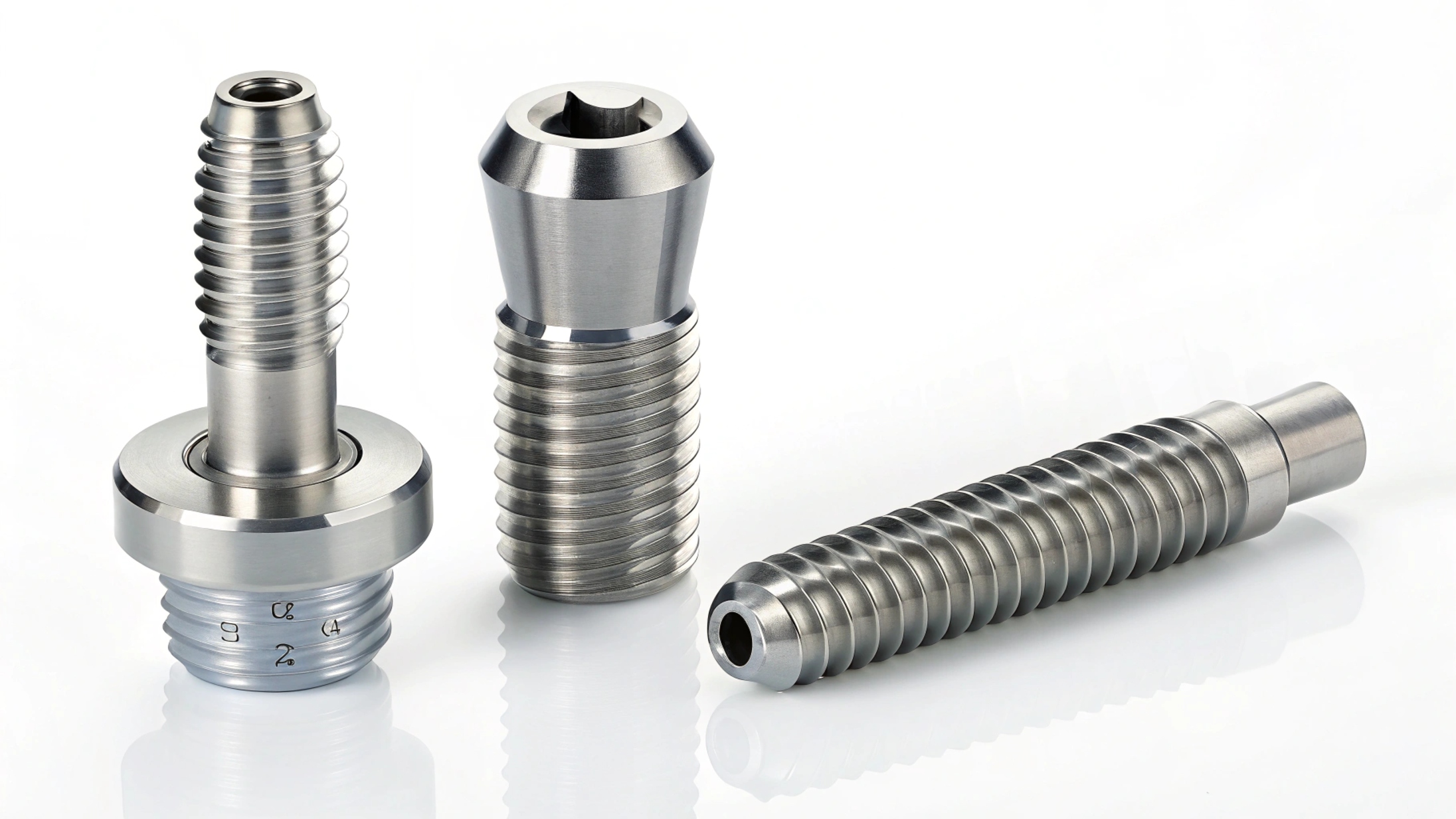

Medical implants, such as orthopedic devices and dental fixtures, rely heavily on CNC machining.

• Custom Design: Each implant often needs to be custom-fitted for individual patients, and CNC allows for the rapid prototyping and production of custom implant designs that meet specific anatomical requirements.

3. Diagnostic Equipment

Devices used for diagnostics should offer high reliability and precision.

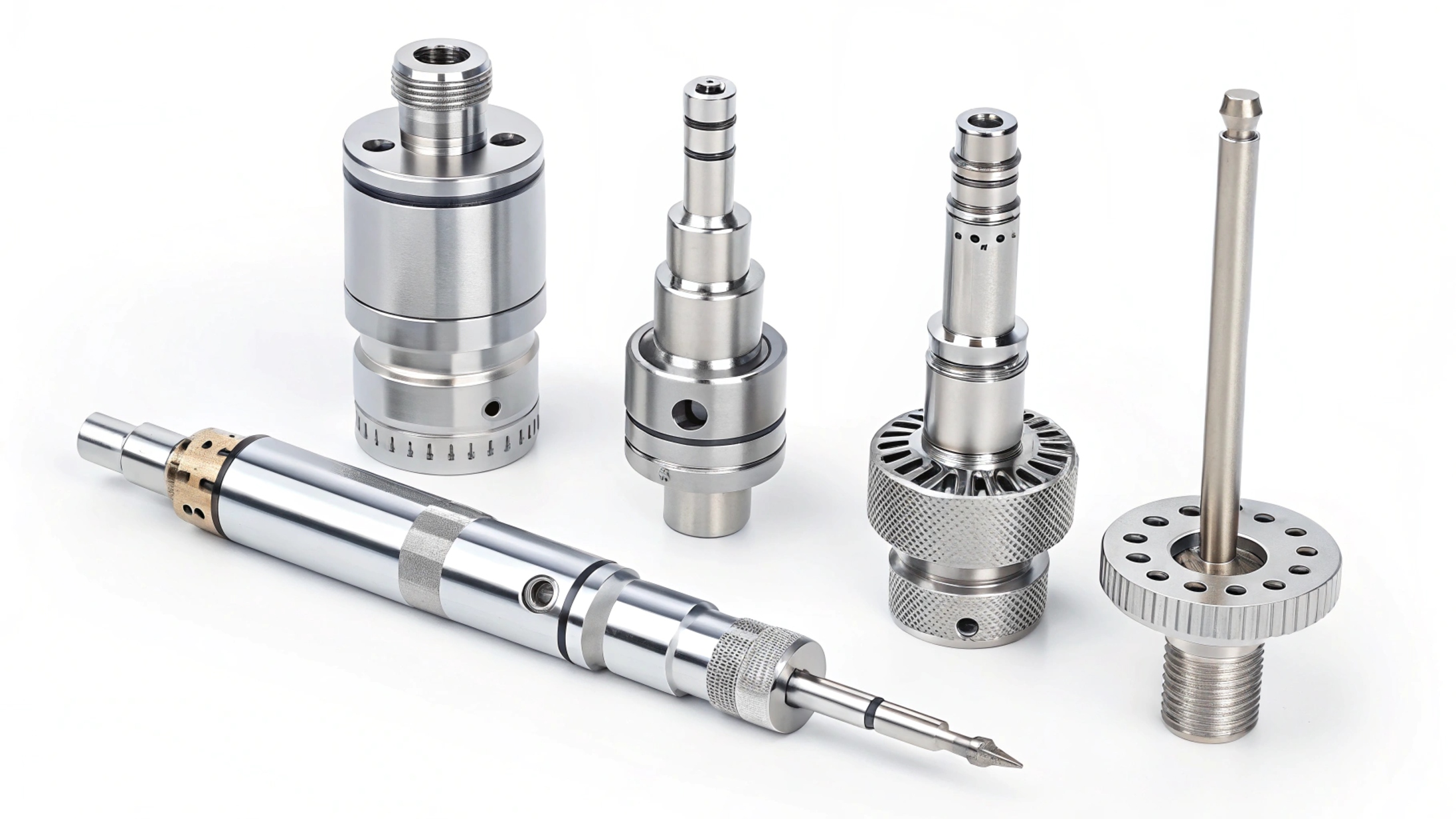

• Components: CNC machining helps produce components for MRI machines, ultrasound devices, and other diagnostic tools that must exceed precision standards.

4. Prosthetic Devices

Prosthetics must be customized to fit individual users while providing optimal functionality.

• Tailored Solutions: CNC machining enables the creation of personalized prosthetic limbs and devices that enhance mobility and comfort.

5. Laboratory Equipment

Manufacturing laboratory equipment and tools requires precision and reliability.

• Designing Components: CNC machining is essential in producing pipettes, petri dishes, and other laboratory tools that require high levels of accuracy and sterile conditions.

Summary

The versatility and precision of CNC machining have made it an essential process in the design and manufacture of various medical devices, enhancing both patient safety and product efficacy.

Conclusion

CNC machining plays a crucial role in medical device manufacturing, offering the precision, flexibility, and reliability that the industry demands. From complex surgical instruments to high-performance implants, CNC technology facilitates the production of high-quality medical devices that meet stringent regulatory requirements.
