Transmission Shafts Explained: Types, Materials, and Uses

Transmission shafts are fundamental components in mechanical systems, playing a vital role in power transmission and motion control.

Understanding their types, materials, and manufacturing processes helps engineers and designers make the right choices for performance, durability, and cost-efficiency.

In this article, I’ll walk you through everything you need to know about transmission shafts—based on what we’ve seen from hundreds of real-world applications.

---

What Is a Transmission Shaft?

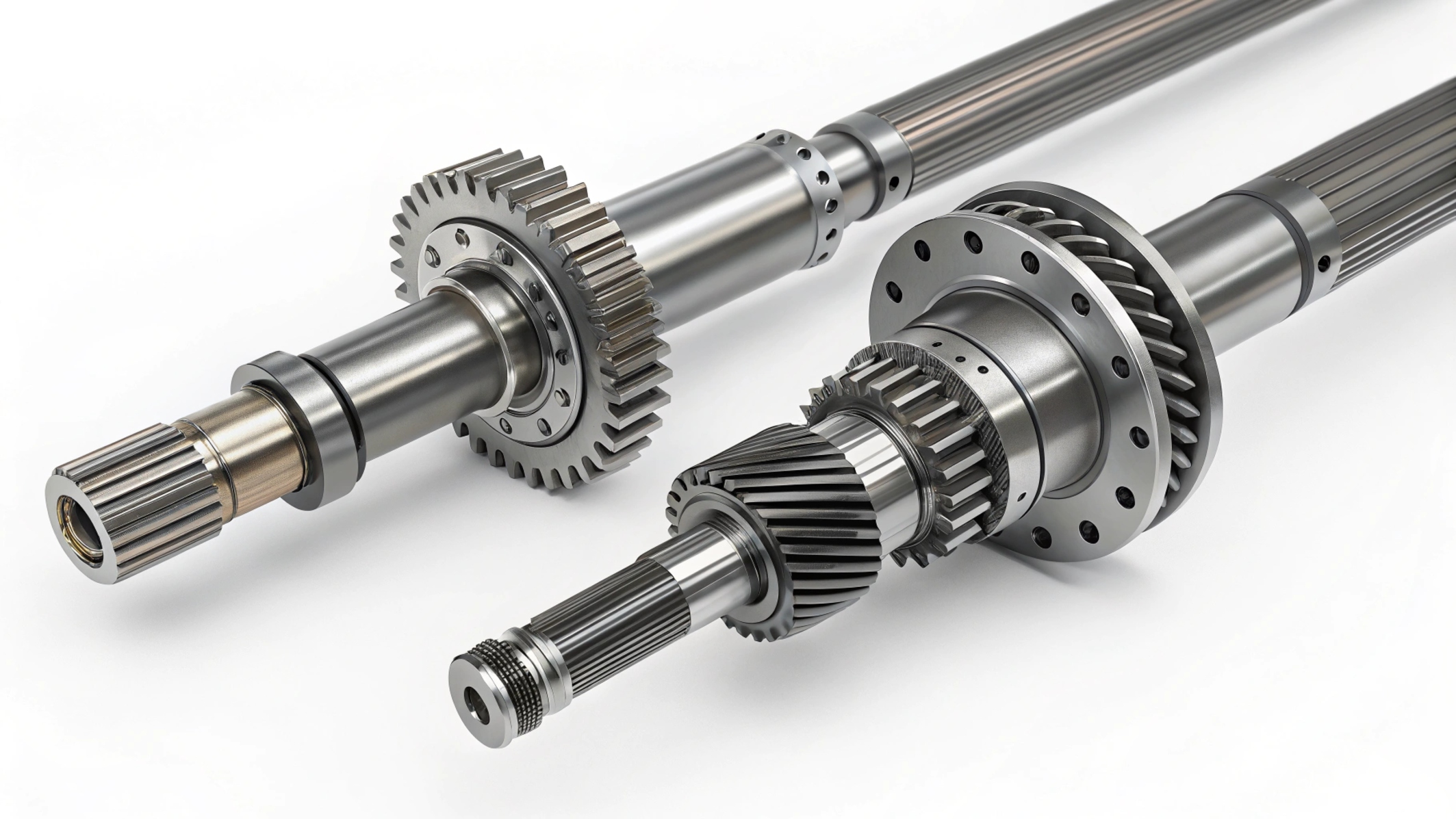

A transmission shaft is a rotating component designed to transmit torque and power from one part of a mechanical system to another.

Shafts are commonly used in gearboxes, engines, pumps, and various machinery to transfer rotary motion.

They typically feature cylindrical geometry, with precision-machined surfaces¹ for bearing fits, gear mounting, and coupling interfaces.

Dive Deeper: How Transmission Shafts Work

Shafts function as the backbone of rotary motion. They not only transmit power but also need to support bending, torsion, and axial loads depending on the setup.

Key mechanical properties required include:

• Torsional strength – ability to resist twisting forces.
• Fatigue resistance² – ability to endure repeated loading.
• Straightness and concentricity – crucial for balanced rotation.

We often receive requests from automotive and automation clients asking for shafts with precise run-out tolerances and surface finishes, because even a minor misalignment can cause vibration or premature wear.

---

---

Common Types of Transmission Shafts

Transmission shafts come in various forms depending on the application, load conditions, and motion requirements.

Each type serves a specific role in the mechanical system, offering distinct advantages.

Dive Deeper: Overview of Shaft Categories

Let’s explore the most commonly used transmission shaft types:

1. Main Shafts³

• The primary element in gearboxes or machines.
• Directly transfers power between components like gears or pulleys.

2. Counter Shafts⁴

• Used to transfer motion indirectly, usually to change direction or reduce speed.
• Common in multi-speed gearboxes.

3. Line Shafts

• Long shafts that transmit power to multiple machines in a line.
• Found in old-style factories or agricultural machinery.

4. Flexible Shafts⁵

• Made with a core of coiled wire, allowing flexibility in direction.
• Used in drills or inspection equipment.

Shaft Type	Typical Application	Key Benefit
Main Shaft	Gearboxes, engines	Direct torque transmission
Counter Shaft	Speed reducers, gear systems	Direction change, speed variation
Line Shaft	Multi-machine power systems	Broad power distribution
Flexible Shaft	Hand tools, dental drills	Maneuverability, compact routing

We’ve machined flexible shafts for clients in the food packaging industry where motion needed to bend around existing equipment—a perfect use case for this type.

---

---

Key Materials Used for Transmission Shafts

Material selection is critical for the shaft’s performance, longevity, and cost-effectiveness.

The choice depends on factors like torque load, operating environment, and machining needs.

Dive Deeper: Comparing Shaft Materials

Here are the most common shaft materials and their typical uses:

1. Carbon Steel (e.g., 1045, 1144)

• Strong, affordable, easy to machine.
• Often used in general-purpose machinery.

2. Alloy Steel (e.g., 4140, 4340)

• Offers improved strength and wear resistance.
• Used in high-load or impact conditions like automotive axles.

3. Stainless Steel (e.g., 303, 316)

• Corrosion-resistant, suitable for food, medical, or marine use.
• Slightly lower strength than alloy steels but offers excellent longevity.

4. Aluminum

• Lightweight, easy to machine, but less strong.
• Used where weight reduction is critical, like in aerospace or robotics.

Material	Strength	Corrosion Resistance	Common Use Cases
1045 Carbon Steel	High	Low	Gear shafts, general machinery
4140 Alloy Steel	Very High	Medium	Performance vehicles, construction
316 Stainless	Medium	Excellent	Food-grade machinery, pumps
6061 Aluminum	Low-Med	Good	Robotics, lightweight actuators

At Elue Industry, we’ve often recommended 4140 steel⁶ with induction hardening for shafts that operate in high-impact environments like lifting equipment or winches.

---

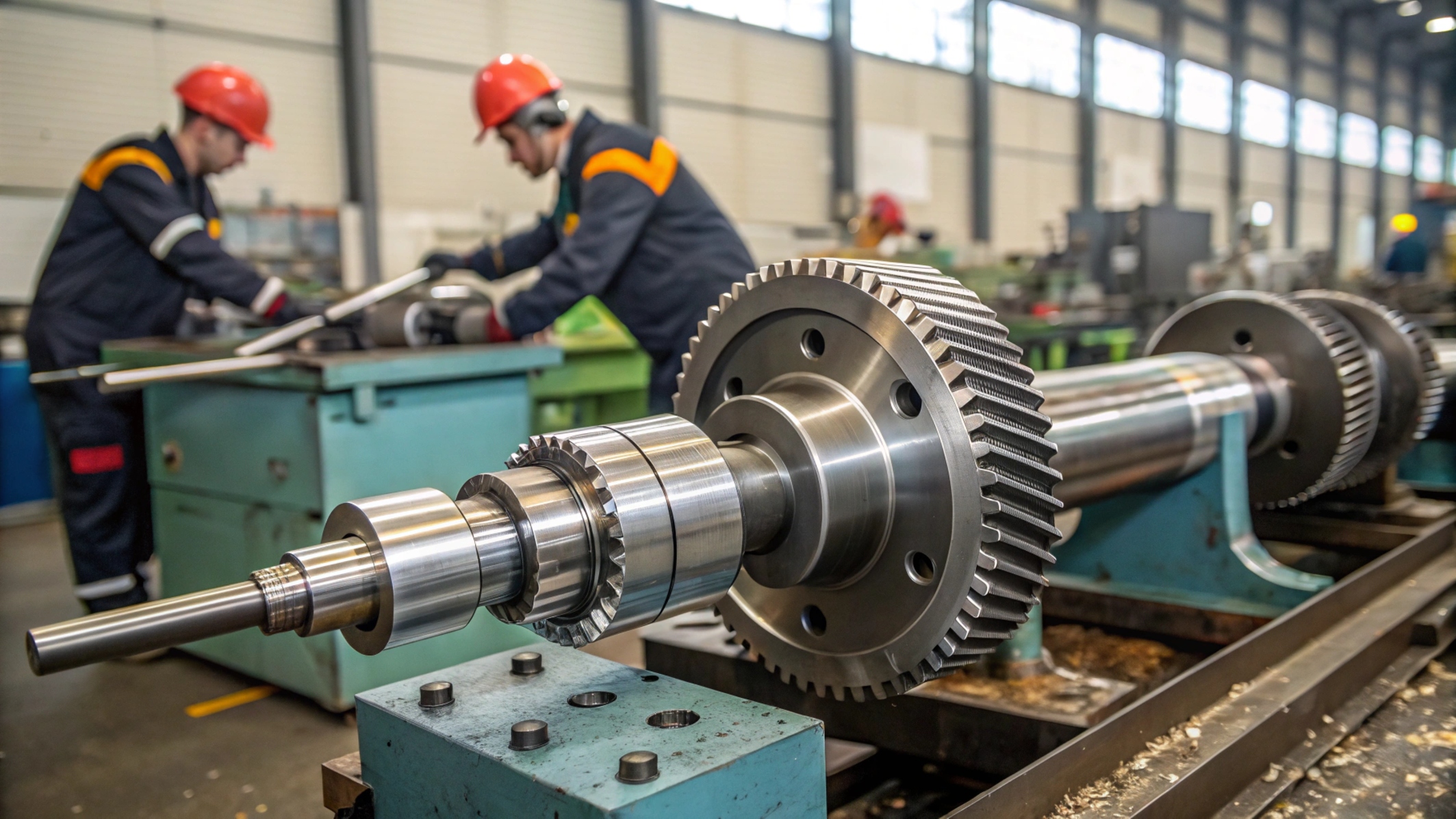

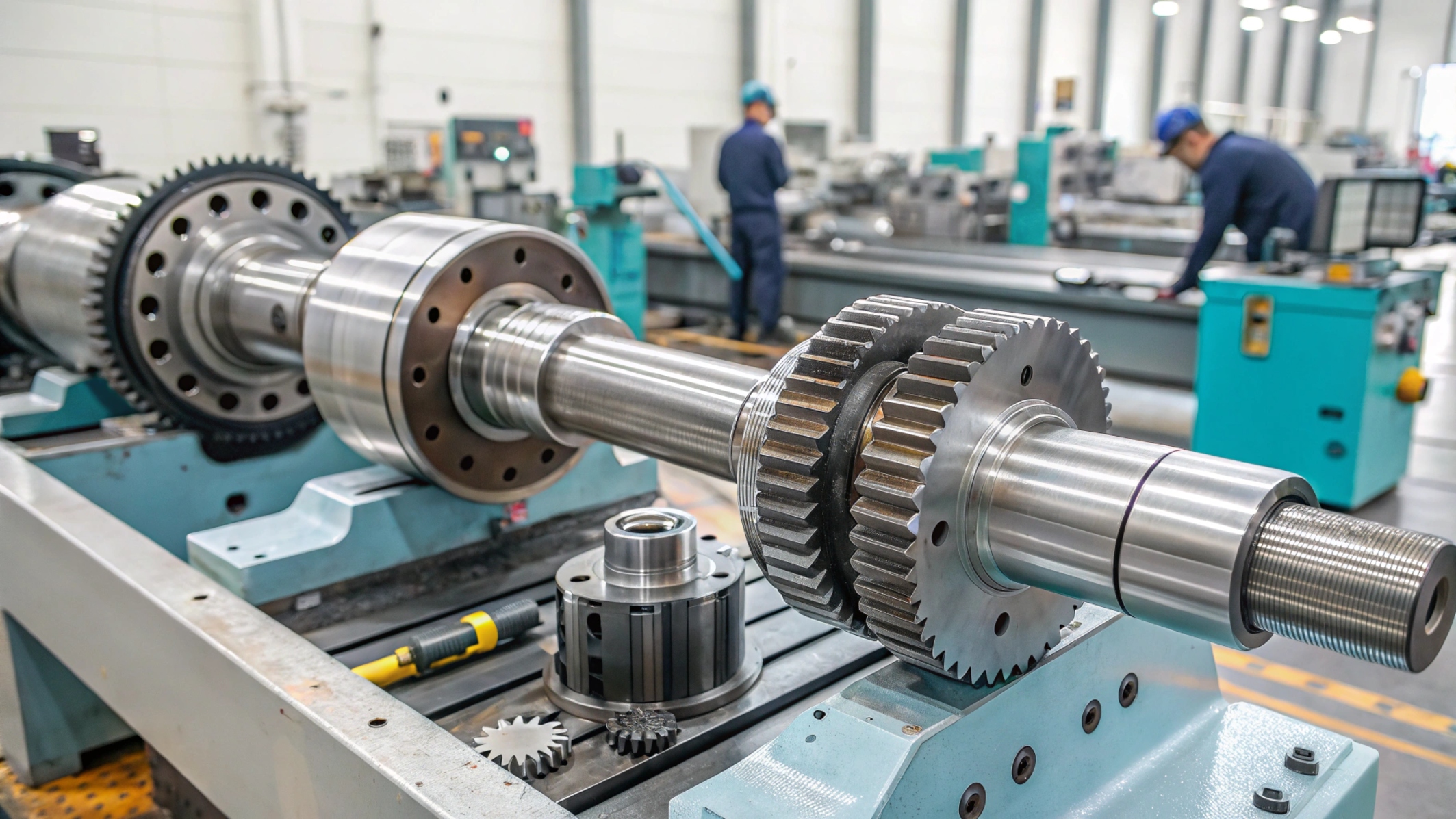

Manufacturing Processes of Transmission Shafts

Producing high-quality transmission shafts requires a combination of machining accuracy and material integrity.

CNC machining, turning, grinding, and heat treatment⁷ are essential steps to achieve precision and performance.

Dive Deeper: End-to-End Manufacturing Flow

Here’s a typical shaft production workflow in our shop:

1. Material Preparation

• Raw bar stock is cut to length.
• Selected for straightness and minimal surface defects.

2. Rough Turning

• The shaft is turned to a near-final diameter.
• Key dimensions like shoulders or grooves are roughed out.

3. Heat Treatment (if required)

• Processes like quenching, tempering, or induction hardening are used to enhance wear resistance and strength.

4. Finish Machining

• Precision turning, milling (for keyways or flats), and threading.
• Tight tolerances are achieved in this step.

5. Grinding

• Cylindrical or centerless grinding is used to achieve exact diameters and smooth finishes, especially for bearing fits.

6. Inspection and Balancing

• Runout, straightness, and surface finish are checked.
• Balancing is done if the shaft rotates at high speeds.

We’ve made shafts with 0.005mm tolerance for critical bearing fits. These projects usually combine CNC turning and OD grinding to meet the exact requirement.

---

---

Common Applications Across Industries

Transmission shafts are used in almost every industry that involves moving parts or machinery.

Their roles vary widely—from transferring engine power to rotating pump impellers or spinning conveyor belts.

Dive Deeper: Industry-Specific Uses

Here’s how different industries use transmission shafts⁸:

1. Automotive

• Drive shafts, camshafts, gearbox shafts.
• Require precise balancing and fatigue resistance.

2. Industrial Automation

• Shafts for robots, conveyors, and actuators.
• Emphasis on dimensional accuracy and light weight.

3. Aerospace

• Aircraft control mechanisms, landing gear systems.
• Materials like titanium or high-strength aluminum are common.

4. Medical Devices

• Shafts in surgical robots or imaging equipment.
• Often stainless steel with electropolished surfaces.

5. Food and Beverage

• Shafts for mixers, augers, and packaging equipment.
• Require food-safe materials and surface finishes.

Industry	Shaft Use Example	Key Design Focus
Automotive	Drive shafts, camshafts	Fatigue life, high torque
Aerospace	Flight control actuators	Weight savings, precision
Food & Beverage	Mixer drive shafts	Corrosion resistance, cleanliness
Robotics	Joint and axis rotation shafts	Compact design, zero backlash

We helped a robotics startup manufacture aluminum shafts with hard anodized surfaces and tight tolerances for precision servos—lightweight yet strong for fast, repeatable motion.

---

Design Considerations for Performance and Durability

A well-designed shaft should offer strength, stability, and long service life—even under challenging conditions.

Proper design includes dimensions, tolerances, surface finish, and mounting methods.

Dive Deeper: Key Design Tips

1. Diameter and Tapering

• Proper diameter ensures the shaft can handle torsional loads without bending.
• Tapered shafts help with load distribution in high-speed systems.

2. Bearing Fit Tolerances

• Too tight can cause interference; too loose leads to slippage.
• Common fits: H7/g6 or H6/f6 depending on the speed and load.

3. Keyways and Splines

• Allow for torque transmission to gears or pulleys.
• Keyways are machined using broaching or milling.

4. Surface Finish

• Smooth finishes reduce friction and wear.
• Common specs: Ra 0.4–1.6 µm for bearing areas.

5. Balancing

• Essential for shafts rotating at high speeds.
• Dynamic balancing prevents vibration and bearing failure.

6. Corrosion Protection

• Stainless steel, plating, or coatings extend lifespan in wet or corrosive environments.

Design Feature	Importance	Typical Method or Spec
Bearing Tolerance	Prevents play or seizure	H7/g6 for standard fits
Surface Roughness	Reduces wear	Ra ≤ 0.8 µm for precision zones
Keyway Strength	Ensures torque transmission	Milled, broached, or EDM cut
Dynamic Balance	Prevents vibration at high speed	Done using balancing machines

When we produced shafts for a paper-processing machine running at 4000 RPM, our engineers prioritized precise balancing and concentric grinding—these were critical to reduce downtime from vibration-related wear.

---

---

Conclusion

Transmission shafts are essential components in countless machines and devices. From their materials to their manufacturing and application, a lot goes into getting them right.

By understanding their function, selecting appropriate materials, and following best design practices, you can ensure top performance and reliability across all industries.

If you're sourcing or designing custom shafts for your next project, don't hesitate to reach out—we're always happy to help with prototyping, material selection, and machining expertise.
